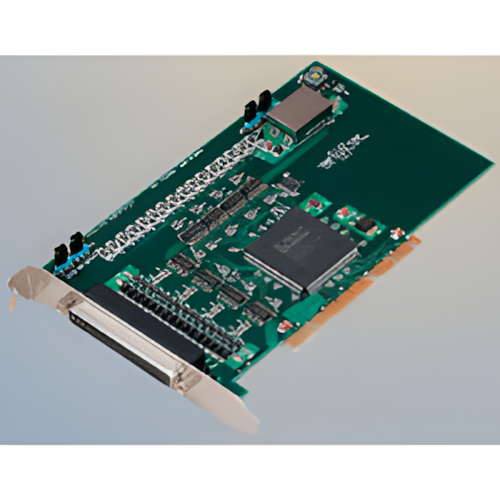

16 CHANNEL opto-isolated digital I/O with 12V Power supply

885552_Contec_Microelectronics_PIO1616BPCIH.jpg-

Manufacturer	Contec Americas
Mfg. Part #	PIO-16/16B(PCI)H
ITEM#	383847
Unit Price	$403.95 (~CAD$503.53)
Availability	In Stock
Buy

INTERNATIONAL GROUND SHIPPING:
For qualified orders, we will waive the Brokerage/Handling Fee for Custom Clearance and Documentation
No other hidden fees will be collected from you when packages arrive. Guaranteed
[ Detailed Explanation ]

[ View Detail Product Info ]

Product Description:
template product descrip
FEATURES

	A different external power supply can be used for each common pin
	Bus-isolation is provided by an opto-coupler ensuring low noise level
	All input signals can be used as interrupts
	Up to 35VDC, 100mA per channel (max) output
	Zener diode provides protection from surge voltage
	Overcurrent protective provided
	Can choose to use internal or external power supply

INPUT

	Type: Opto-isolated compatible with current sink output (negative logic)
	No. of channels: 16, all available as interrupts (1 common)
	Input resistance: 4.7k£[
	Current ON: 2.0mA (min)
	Current OFF: 0.16mA (max)
	Interrupt: 16 signals are arranged into a single output of interrupt signals INTA
	Interrupt events: Generated at the rising or falling edge
	Response time: 200µsec (max)

OUTPUT

	Type: Opto-isolated open collector (current sink, negative logic)
	No. of channels: 16 (1 common)
	Output voltage: 35VDC (max)
	Output current: 100mA per channel (typ)
	Residual voltage: 0.5V (max) (current: 50mA max.) 1.0V (max) (current: 100mA max.)
	Surge protector: Zener diode RD47FM(NEC)
	Response Time: 200µsec (max)

GENERAL

	I/O address: Any 32-byte boundary
	Boards in one system: 16 (max)
	External power: +12~24VDC (±10%)
	Internal power: 12VDC 240mA
	Power consumption (max): +5VDC 1200mA (using the internal power) +5VDC 300mA (using the external power)
	Cabling distance: 50m approx. (dependant upon wiring environment)
	PCI bus specification: 32-bit, 33MHz, supports universal key shapes
	Operating temperature: 0~50°C
	Operating humidity: 10~90%RH (no condensation)
	Dimensions: 6.94" x 4.16" (176.4mm x 105.68mm)
	Weight: 5.29oz (150g)
