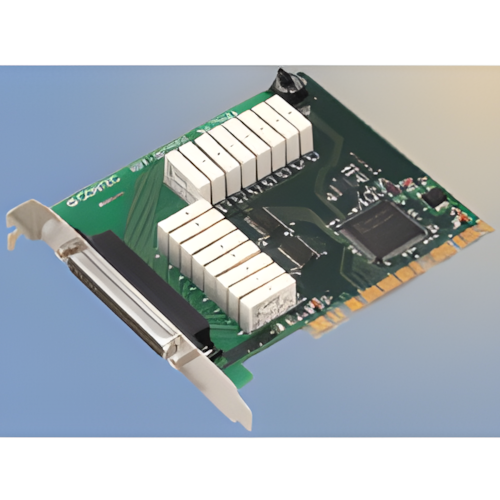

Contec Americas 16 CHANNEL Reed Relay output board for PCI

Manufacturer Contec Americas Mfg. Part # RRY-16C(PCI)H ITEM# 383827 Unit Price $493.57 (~CAD$615.24) Availability In Stock Buy

Shipping and Handling: Singular Select... Regular [6-9 Business Days] -- $63.9[CAD$79.66] Priority [4-6 Business Days] -- $107.4[CAD$133.88] Extreme [2-4 Business Days] -- $158[CAD$196.95]  INTERNATIONAL GROUND SHIPPING: For qualified orders, we will waive the Brokerage/Handling Fee for Custom Clearance and Documentation No other hidden fees will be collected from you when packages arrive. Guaranteed [ Detailed Explanation ]

[ View Detail Product Info ]

Product Description: FEATURES 16 reed relays High-capacity output rating to a maximum of 125VAC / 30VDC, 2A / channel   RELAYS Output format: 1a, make No. of channels: 16 Operating voltage: 125VAC / 30VDC Carrying current: 2A (max.) Contact resistance (initial state): 30m£[ (max) Operating time (at ON): 7msec (max) Recovery time (at OFF): 6msec (max) Mechanical life expectancy: 28 (min) Electrical life expectancy: 105 (min) Relay type: PCN-105D3MHZ   GENERAL I/O address: Any 32-byte boundary Power consumption: +5VDC 550mA (max) Operating temperature: 0~50°C Operating humidity: 10~90%RH (no condensation) Dimensions: 4.79" (l) x 4.19" (h) (121.69mm x 105.68mm) Weight: 5.29oz (150g)
