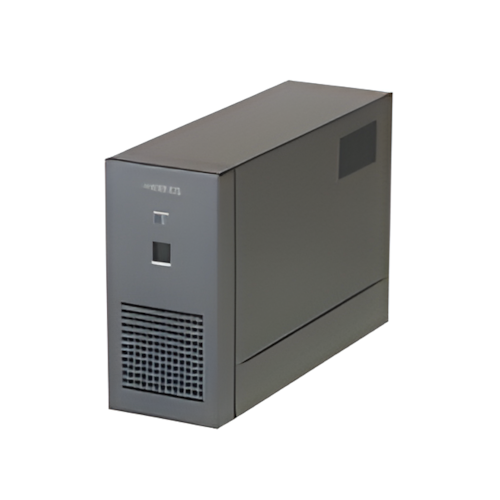

Product Description:
Features :
Expansion chassis power switch can be synchronized with
host computer power
Compact chassis design
AC adapter included
|
Specifications :
GENERAL
Compatible bus: PCI Local Bus
Specification Rev2.2 (+5V type)
Memory: Any 32-bit address
Interrupt level: INTA to INTD
Available expansion slot power: +5VDC 7A (max),
+3.3VDC 3A (max), +12VDC 1.5A (max), -12VDC 0.3A (max)
Maximum total power capacity: 60W
AC input voltage: 100 to 240VAC
AC frequency: 47 to 63Hz
|
|
ECH(PCI)SF-H2B
Number of user
available slots: 2
Largest acceptable board size
(inches): 6.95 x 4.2 (176.5mm x 107)
External dimensions (inches): 2.8 x
5.7 x 8.7 (71mm x 144mm x 222mm)
|
|
AC ADAPTER
External dimensions (inches): 3.3 x 2 x 6.1 (85mm x 50mm x 155mm)
Cable length (adapter to chassis): 1.2m
Cable length (adapter to AC): 1.8m |
|
|
|
|
