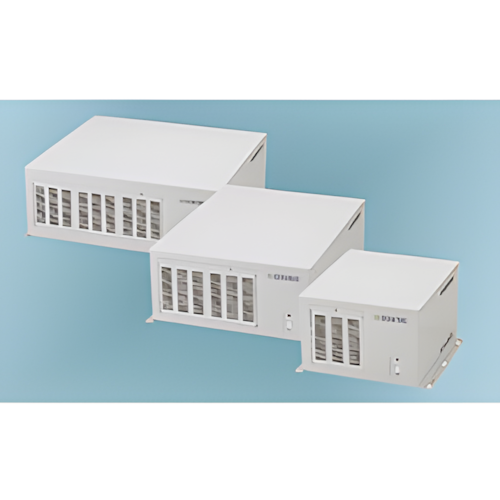

Product Description:
Features :
Expansion chassis power switch can be synchronized with
host computer power
Steel chassis suitable for use in field
Internal cooling fan
Rackmountable using supplied bracket
|
Specifications :
GENERAL
Compatible bus: PCI Local Bus
Specification Rev2.2 (+5V type)
Memory: Any 32-bit address
Interrupt level: INTA to INTD
AC input line: 115 to 230VAC
AC line frequency: 50 to 60Hz
AC cable length: 2.5m
Temperature (Operating): 0 to 50°C
Temperature (Storage): 0 to 60°C
Humidity (Operating): 20 to 80%RH (no
condensation)
Humidity (Storage): 10 to 90%RH (no condensation)
|
|
ECH(PCI)BE-H4A
Number of user available slots: 4
Largest acceptable board size (inches): 6.95 x
4.2 (176.5mm x 107)
External dimensions (inches): 8.3 x 5.4 x 9.5
(210mm x 138mm x 235mm)
Maximum total power capacity: 130W
Available expansion slot power: +5VDC 11.3A
(max), +3.3VDC 6A (max), +12VDC 3A (max), -12VDC 0.7A (max)
|
|
RESTRICTIONS
Since expansion system utilizes
PCI-to-PCI bridge, host computer BIOS must be able to recognize this
bridge
High
performance boards may experience a slower overall transfer rate when
installed in the expansion chassis than when installed directly in the
host computer
Video boards, additional bus expansion boards
and boards that can not be used with PCI-to-PCI bridge can NOT be used
in these expansion chassis
|
|
|
