Product Description:

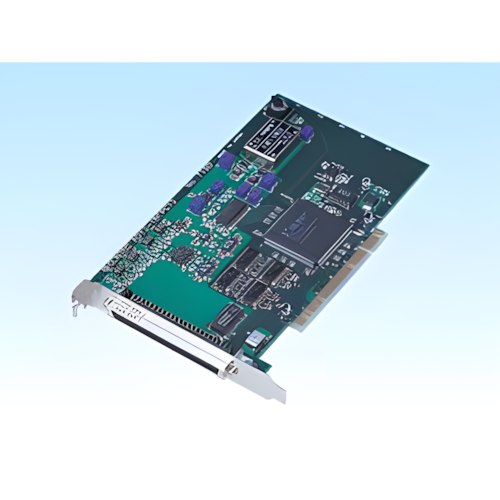

AD12-16(PCI) is the interface board of the PCI bus conformity which
inputs an analog signal and performs conversion (AD translation) to a
digital signal. Conversion speed: 10µsec/ch and Resolution: AD
translation is made in 12bit. With the Windows version driver
(API-PAC(W32)).
- Multi-channel analog input: The analog input of a single end
input 16
channels and differential input 8 channels is possible. Selection of a
single end input, and a differential input can be set up by software.
- Input range setup by software: An input range can be chosen from
the
following ranges for every channel, and can be set up by software.
±10V, ±5V, ±2.5V, ±1.25V, 0 - +10V, 0 -
+5V, 0 - +2.5V, 0 - +1.25V
- Sampling control function: A sampling to the arbitrary timing by
software or the periodic sampling which synchronized with the sampling
clock can be performed. The selection of an external sampling clock
signal which uses the digital signal inputted from the internal
sampling clock which uses the clock generator of board loading, or the
outside is possible for a sampling clock.
- Digital input-and-output function: It has four digital inputs of
a TTL
level, and four digital outputs, and the monitor of external apparatus
and control can be performed.
- Option apparatus: By using option apparatus, connection can be
performed easily.
| Digital
I/O |
| Bus |
PCI; |
| Function |
I/O; |
| Input |
4; |
| Output |
4; |
| Bidirection |
-; |
| Working
voltage |
Input: 5VDC-TTL; Output: 5VDC-TTL; |
| Analog
I/O |
| Bus |
PCI; |
| Function |
Input; |
| Number of the
input channels |
Single end 16ch (Differential 8ch) ; |
| The number of
output channels |
-; |
| Resolution |
12bit; |
| Input Range |
10V; 5V; 2.5V; 1.25V; 0 -- 10V; 0 -- 5V; 0 -- 2.5V; 0 --
1.25V; |
| Output range |
- |
|
