Product Description:

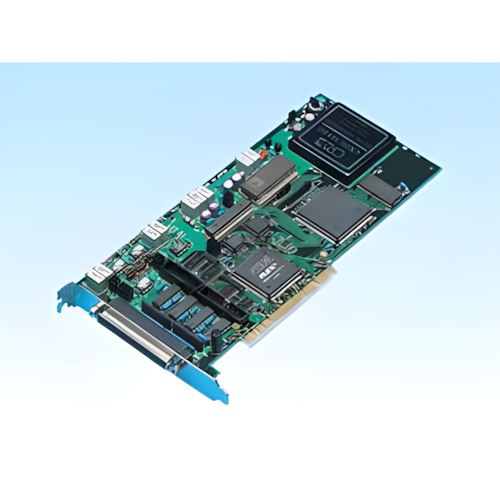

AD12-16U(PCI)EH is the interface board of the PCI bus conformity which
inputs an analog signal and performs conversion (AD translation) to a
digital signal. Conversion speed: 1µsec/ch and Resolution: A/D
conversion is performed by 12bit. With the Windows version driver
(API-PAC(W32)).
- Single end 16 channels and differential 8 channels (analog input
function): Selection of a single input or a differential input is
possible with the jumper on a board. The turn of the channel to change
can be beforehand set as an exclusive register arbitrarily.
- Loading
of a buffer memory (analog input function): Carry on a board the buffer
memory for 16M data which can be used in FIFO or ring form. The
sampling as background processing independent of the throughput of a
personal computer is possible.
- A various sampling control function (analog input function): A
start/stop of a sampling can detect and control the size of not only
the command of software but an analog signal, and the signal of a TTL
level. Moreover, selection of the internal sampling clock which uses
the clock generator of board loading, and the external sampling clock
which uses the digital signal inputted from the outside is possible for
the sampling clock which determines sampling speed.
- Analog output function: Carry the analog output function of one
channel.
- Digital input/output function: The board has four digital input
and
four digital output pins for TTL-level signals, allowing an external
device to be monitored and controlled.
- Compact board size: High efficiency is condensed in compact PCI
short size.
| Digital
I/O |
| Bus |
PCI; |
| Function |
I/O; |
| Input |
4; |
| Output |
4; |
| Bidirection |
-; |
| Working
voltage |
Input: 5VDC-TTL; Output: 5VDC-TTL; |
| Analog
I/O |
| Bus |
PCI; |
| Function |
Input; Output; |
| Number of the
input channels |
Single end 16ch (Differential 8ch) ; |
| The number of
output channels |
1ch; |
| Resolution |
12bit; |
| Input Range |
10V; 5V; 2.5V; 0 -- 10V; 0 -- 5V; |
| Output range |
10V; 5V; 0 -- 10V; |
|
