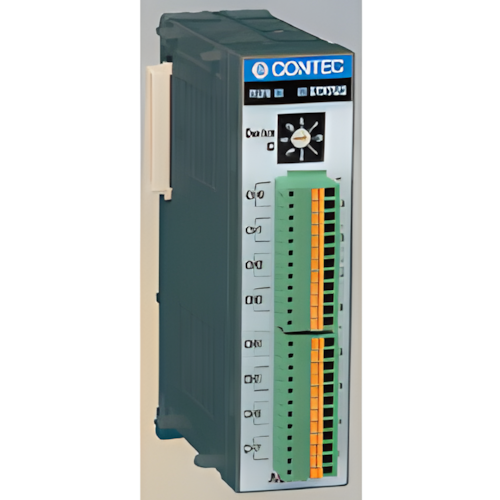

Product Description:
This product can change an external analog voltage signal into
digitized data. It connects with the controller module of F&eIT
series, and a system can be built, or it can connect with ADI12-8(USB)
GY, and an input channel can be added. Moreover, since CPU which
controls an external signal and a module is isolated with the digital
isolator, it does not have electric influence of external on a host
computer as it is.
- An input range is common to a channel and can be chosen from four
kinds in all of input range unipolar and bipolar.
- Since it corresponds to the differential input, even if distance
with
the source of a signal is long and potential difference arises again,
an exact voltage value is measurable.
- Device ID can be set up with a rotary switch and apparatus number
management is easy.
- A special tool was not needed but wiring has adopted the easy
screw-less connector plug.
- This module is equipped standardly with 35mmDIN rail attachment
mechanism. Moreover, the connection with a controller unit is an easy
and smart side stack system.
Electric Certification Compliancy: CE
Environment Compliancy : RoHS Directive
Communication |
Bus |
F&eIT |
Function |
Input |
Number of the input channels |
Differential 8ch |
Resolution |
12bit |
Input
Range |
10V; 5V; 0 -- 10V; 0 -- 5V |
F&eIT |
Product
function / Classification |
Device module |
I/O module |
Function |
Analog Input Module |
|
