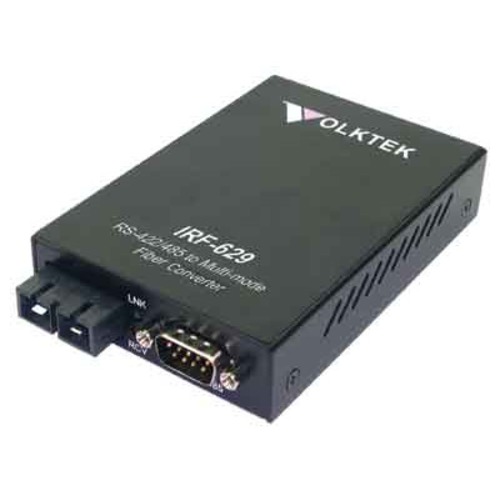

Standards
|
|
|
EIA/TIA-422,
EIA/TIA-485
|
Ports
|
|
|
1 x Serial
RS-422/485 (Terminal Block)
|
|
1 x Fiber
(ST ; Multi-mode)
|
Max. Distance
|
|
Copper
|
1200 meters
|
Fiber
|
Up to
120Km (Single Mode)
|
Unit LED
|
|
PWR
|
Green :
Illuminated for normal operation
|
LNK
|
Green :
Illuminated when fiber is properly connected
|
RCV
|
Amber :
Illuminated for receiving packets from RS-422/485 Device
|
DIP Switches
|
|
DIP1
|
N/A
|
DIP2
|
N/A
|
DIP3
|
Enables /
disables 2-wire / 4-wire Mode
|
DIP4
|
Enables /
disables termination (TMR)
|
Power
|
|
Power Input
|
9~32V DC /
800mA External power adapter
|
Frequency
|
50Hz to
60Hz
|
Temperature
|
|
Operating
|
0 C to 50 C
|
Storage
|
-20 C to
80 C
|
Humidity
|
|
Operating
|
10% to 80%
, non-condensing
|
Storage
|
5% to 90%
, non-condensing
|
Emissions
|
|
|
FCC Part
15 of Class A & CE approved
|
Dimensions
|
|
|
109.2 x 90
x 31.5mm (D x W x H)
|
