Product Description:
Specifications

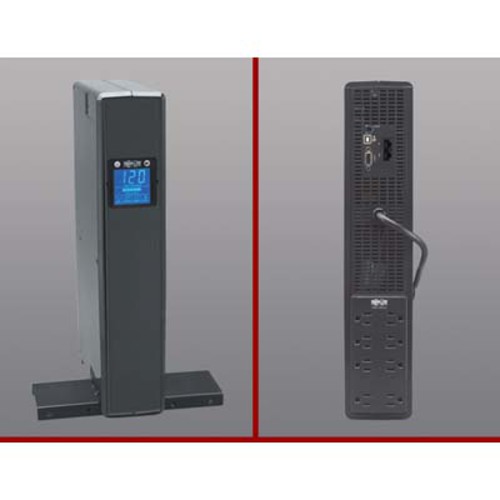

- Mfr Part Number: SMART1500LCD
- Voltage compatibility: 120 VAC
- Frequency compatibility: 60 Hz
- Output:
- Output volt amp capacity: 1500 VA
- Output watt capacity: 900 Watts
- Output nominal voltage: 120 VAC
- Output voltage regulation: Battery Mode - PWM sine wave 115V +/-5%
- Output frequency regulation: Line Mode - Passes line frequency of 60Hz +/-10%; Battery Mode - Inverter output regulated to 60Hz +/-0.5Hz
- Outlet quantity / type: 8x NEMA 5-15R
- Overload protection: 10A input circuit breaker
- Input:
- Maximum input amps: 8.5 A
- Input connection type: NEMA 5-15P
- Input cord length: 6 ft. / 1.8 m
- Recommended electrical service: 120V 15A
- Battery:
- Full load runtime: 3.5 min. (900W)
- Half load runtime: 13 min. (450W)
- Typical battery lifespan: 4~6 years (depending on usage)
- Battery recharge rate: 2~8 hours to 90%
- Voltage Regulation:
- Voltage regulation description: Automatic Voltage Regulation (AVR) circuits maintain clean, regulated computer-grade 120V nominal output, without using battery power, during brownouts to 75V and overvoltages to 147V
- Overvoltage correction: Input voltages between 128VAC and 147VAC are reduced by 12%
- Brownout correction: Input voltages between 93VAC and 107VAC are boosted by 14%
- Severe brownout correction: Input voltages between 75VAC and 92VAC are boosted by 30%
- Surge / Noise Suppression:
- AC surge suppression: 480 joules
- AC suppression response time: Instantaneous
- Dataline suppression: Tel/DSL or Ethernet
- EMI / RFI AC noise suppression: Yes
- Communications:
- Network monitoring port: DB9 and USB
- WatchDog compatibility: Compatible with Tripp Lite's Watchdog system service to restore operation to locked equipment through soft reboot of application/OS or hard power off/on reboot of connected equipment; ideal for unattended kiosk applications
- Line / Battery Transfer:
- Transfer time from line power to battery mode: 2~4 milliseconds
- Low voltage transfer to battery power: Switches to battery power as line voltage decreases to 75V or less, switches back to AC mode as line voltage increases to 79V or higher
- High voltage transfer to battery power: Switches to battery mode as line voltage increases to 147V or higher, switches back to AC mode as line voltage decreases to 143V or lower
- Certifications: Tested to UL1778 (USA), CSA (Canada), NOM (Mexico), Class B (EMI), FCC part 68 and Industry Canada (US & Canada)
- Special Features:
- Cold Start: Yes, inverter can be "cold started" to enable temporary AC output during a power failure
- Appearance: Attractive black color scheme
- Physical:
- Material of construction: ABS
- Form factors supported: Rack/Tower
- Cooling method: Convection
- Dimensions (WxDxH): 3.5 x 10.5 x 17.25 inch / 8.9 x 26.7 x 43.8 cm
- Weight (lbs): 29 lbs /13.2 kg
|
