Product Description:

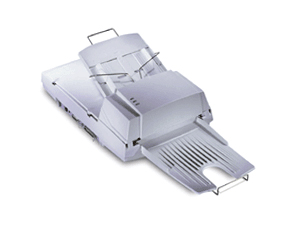

AV3800 Document Scanner Technical
Specifications
- Type: 1-pass color Flatbed Scanner with built-in ADF
- Optical Resolution: up to 600 dpi
- Software Resolution: 1200 dpi
- Image Sensor: Color Charged-Coupled Device (CCD)
- Light Source: Cold Cathode Fluorescent Lamp (CCFL)
- Scanning Area: ADF mode (8.64" x 14.27"), Flatbed mode (8.64" x
11.69")
- Scanning Modes: 48-bit color, 16-bit grayscale,lineart/halftone,
error diffusion
- Interface: SCSI-2
- Power Source: 100Vac-240Vac, 50-60Hz
- Consumption: < 48W
- Operation Temperature: 10C to 35C (50F to 95F), 20% to 80% R.H.
- Dimensions (W x D x H): 22.4" x 13.8" x 7.8"
- Weight: 15.4 lbs
- ADF Specifications:
- Speed: up to 40PPM; 80IPM (200dpi, lineart, A4-size, duplex
mode)
- Paper Tray Capacity: 50 pages
|
