Product Description:
For serial to Ethernet connectivity

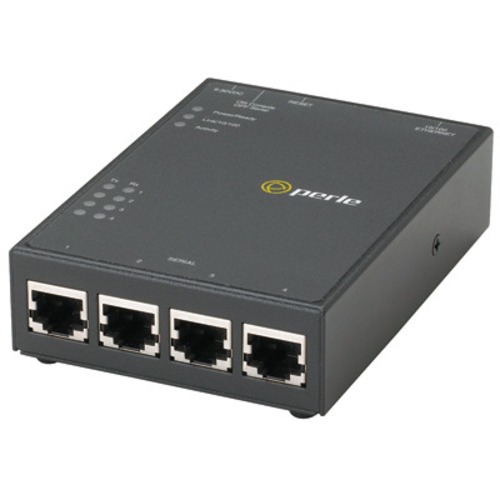

applications, the IOLAN STS4-D is the most advanced device server
available. Delivering high performance in a compact size, an IOLAN
STS4-D offers extensive security, flexibility and next generation IP
technology making it ideal for applications that require remote
device/console management, data capture or monitoring.
| Product Type: |
Terminal
Server |
| Flow Control: |
Hardware Flow
Control |
| Functions: |
The
IOLAN STS4-D is ideal for connecting serial based COM port, UDP or TCP
socket based applications to remote devices. Perle's TruePort V5
re-director provides fixed TTY or COM ports to serial based
applications enabling communication with remote devices connected to
Perle device servers either in encrypted or clear text modes. You can
also tunnel serial data between devices across an IP network. |
| Interfaces/Ports: |
4 x RJ-45 |
| Management: |
Web
browser or secure web browser via https(SSL/TLS ), Perle DeviceManager
software to managesingle or multiple device servers,CLI -Telnet, SSH,
shared console portSNMP, MIB II, Perle MIB, read and
writeCapabilities,SYSLOG,Port Buffering-local or 3DES encrypted toNFS
server |
| Protocols: |
TCP/IP
ARP
RARP
UDP
ICMP
BootP
DHCP
TFTP
Telnet
Reverse Telnet
DNS
HTTP
WINS
PPP
HTTPS
SSH
CSLIP
LPD
CIDR
SSH v2
SMTP
PAP/CHAP
|
| Security Features: |
SSHV1
and SSHV2,SSL V3.0/TLS V1.0, SSL V2.0,SSL Server and SSL client mode
capability,Encryption: AES (256/192/128), 3DES,DES, Blowfish, CAST128,
ARCFOUR(RC4), ARCTWO(RC2),Hashing Algorithms: MD5, SHA-1,RIPEMD160,
SHA1-96, and MD5-96,Key exchange: RSA, EDH-RSA, EDH-DSS, ADH
X.509Certificate verification: RSA, DSACertificate authority (CA) list,
Local database,RADIUS Authentication and Accounting,TACACS+, LDAP, NIS,
Kerberos, RSA SecureID-agent or via RADIUSIP Address filtering,Disable
unused daemons |
| Processor: |
MPC852T Motorola
66MHz |
| Standard Memory: |
32MB RAM |
| Maximum Memory: |
8MB Flash Memory |
| Status Indicators: |
Power/ReadyLink
status/Lan SpeedNetwork Link activitySerial : Tx and Rx data |
| Input Voltage: |
9 V DC to 30 V DC |
| Temperature: |
32 °F (0.0
°C) Up to 131 °F (55.0 °C) |
| Package Contents: |
CD,Quick Start
Guide, RJ-45 TO DB9M Adapter, |
| Certifications & Standards: |
FCC Part 15A, CE,
CAN/CSA 22.2, UL60950, EN 55022 Class A, EN 55024 Class A |
| Color: |
Black |
| Dimensions: |
1.1" Height x
3.2" Width x 4.4" Depth |
| Shipping Dimensions : |
2.3" Height x
6.75" Width x 10.0" Depth |
| Standard Warranty: |
Lifetime |
| Additional Warranty Information: |
The
Perle IOLAN STS4-D is backed by the best service and support in the
industryincluding Perle's unique lifetime warranty. Since 1976 Perle
has been providing itscustomers with networking products that have the
highest levels of performance,flexibility and quality. |
|
