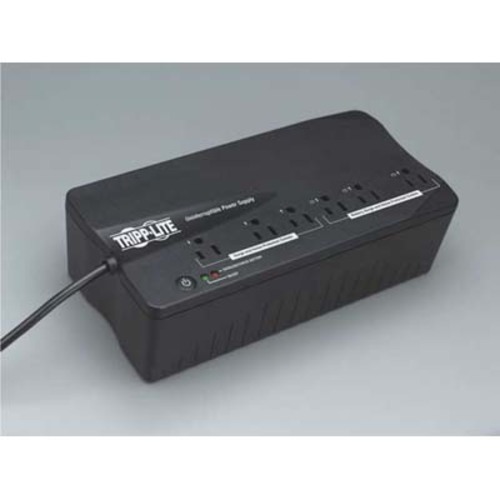

MODEL- BC350              VENDOR- TRIPPLITE

FEATURES- BC Personal UPS System
       Tripp Lites BC350 standby UPS offers power protection for PCs,
        workstations and other sensitive electronics in an attractive
        ultra-compact, mountable housing. Prevents data loss and system
        downtime by providing battery-supported AC output during brownouts
        and blackout conditions.
       6 widely spaced output receptacles accommodate large transformer
        plugs without blocking outlets. 3 outlets with full battery support
        and surge suppression protect computers, monitors and other vital
        system components from loss of power; 3 additional surge
        suppression-only outlets are ideal for printers and other
        accessories not requiring battery support.
       Audible alarm and front panel LEDs offer status information
        regarding line and battery power operation. 350VA/180W power
        handling ability supports entry-level PCs for up to 12 min. during
        power failures.
       Find the TrippLite UPS appropriate for your needs. Try the TrippLite UPS Sizing Guide Today.
* BC350U standby UPS offers complete protection from blackouts, brownouts
  and surges.
* 6 widely spaced outlets accommodate large transformer plugs without
  blocking outlets.
* 3 battery-supported outlets protect computer, monitor and vital system
  peripherals; 3 additional surge suppression-only outlets protect printers
  and other system accessories not requiring battery support.
* Provides battery-derived AC output during blackouts and brownouts.
* 350VA/180W power handling ability supports a variety of PCs, workstations
  and other sensitive electronics.
* Supports entry-level PC systems up to 12 min. during blackout conditions.
* Hot-swappable user battery replacement supported via battery access door.
* Space-saving, ultra-compact housing fits almost anywhere.
* $100,000 connected equipment insurance (USA and Canada only)

  -- SPECIFICATIONs ----------------------------------
OUTPUT     - Volt amp capacity (VA): 350
             Watt capacity (watts) : 180
             Nominal voltage       : 120VAC
             Voltage regulation    : BATTERY MODE: PWM sine wave output
                                                     115V +/-5%.
             Frequency regulation  : LINE MODE- Passes line frequency of
                                                    60Hz +/-10%.
                                     BATTERY MODE- Inverter output
                                                    regulated to 60Hz +/-
                                                    0.5Hz.
             Outlets               : (6) NEMA 5-15R output receptacles
                                         (3 with UPS and surge suppression.
                                          3 with surge suppression only)
INPUT      - Maximum input amps    : 12A
             Input connection type : NEMA 5-15P
             Input cord length     : 6 ft., 16 gauge
             Recommended electrical
                            service: 15A 120V
BATTERY    - Full load runtime     : 2.5 min. full load (350VA/180 watts)
             Half load runtime     : 8 min. half load (175VA/90 watts)
             DC system voltage     : 12 VDC
             Typical lifespan      : 3-6 years, depending on usage
             Battery recharge rate : 2-4 hours to 90%
             Battery Access        : Hot-swappable batteries are accessible
                                       via battery door.
LEDS, ALARMS & SWITCHES-
             Front panel LEDs      : (2) LEDs indicate line power, battery
                                         power status.
             Alarms                : Audible alarm beeps at regular
                                       intervals to indicate battery backup
                                       operation.
                                     Alarm also sounds during self-test
                                       operation.
             Switches              : Combination power off/on/self-test
                                       push button switch.
SURGE/NOISE SUPPRESSION-
             AC surge suppression  : 380 joules
             AC suppression
                      response time: Instantaneous
             EMI/RFI AC noise
                        suppression: Yes, >40dB @ 1 MHz
MISC.      - Cold Start            : Yes, inverter can be cold started to
                                       enable temporary AC output during a
                                       power failure.
             Appearance            : Attractive black ultra-compact housing
APPROVALS  - Certified to UL1778-USA by TUV, Certified to CSA-Canada
               standards by TUV, FCC Class B (emissions), FCC Part 68 +
               IC-DOC.
FORM FACTOR- Ultra-compact desk/floor mount
DIMENSIONS - 10.5"w x 3.0"h x 5.0"d               WT.- 7.7 lbs.
  www.tripplite.com
