| Manufacturer |
Tripp Lite |
| Manufacturer Part Number |
OMNI900LCD |
| Manufacturer Website Address |
www.tripplite.com |
| Product Line |
OmniSmart |
| Product Name |

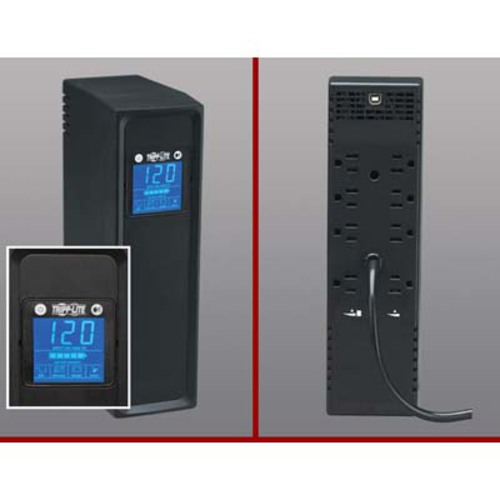

OmniSmart 900 VA Rackmountable/Tower Digital UPS |
| Marketing Information |
OMNI900LCD Digital Uninterruptible Power Supply offers voltage
regulation, surge suppression and long lasting battery support during
blackout. Supports entry level PCs up to 50 minutes or single VCR/DVR
components for up to 2.5 hours during blackouts.
|
| Product Type |
Line-interactive UPS |
|
| Plug/Connector Type |
NEMA 5-15P |
| Receptacles |
4 x NEMA 5-15R - Backup/Surge-protected
4 x NEMA 5-15R - Surge-protected
|
| Switching Time |
4 ms |
|
| Load Capacity |
900VA / 475W |
| Input Voltage |
110V AC |
| Input Voltage Range |
120V AC |
| Output Voltage |
120V AC Nominal |
| Frequency |
60Hz |
| Voltage Handling |
±5% Battery Regulation |
| Current |
12A |
| Waveform Type |
Pulse-width Modulated Sine Wave |
| Surge Energy Rating |
480J |
|
| Audible Alarms |
AC Input Failure |
|
| Status Indicators |
Front panel LCD screen with blue
backlight offers:
Continuous input line voltage data
UPS status information on line power status
Battery power status
Battery charge level
Voltage regulation operation
|
|
| Interfaces/Ports |
1 x USB 4-pin |
|
| Backup/Run Time |
4 Minute(s) 475W Full-load
15 Minute(s) 237W Half-load
|
| Battery Life |
4 Year(s) to 6 |
| Battery Recharge Time |
8 Hour(s) |
|
| Temperature |
0 °C (32 °F) to 40 °C (104 °F) Operating
-15 °C (5 °F) to 50 °C (122 °F) Storage
|
| Humidity |
0 to 95% Non-condensing Relative Humidity |
|
| Color |
Black |
| Form Factor |
2U Rack-mountable Tower |
| Dimensions |
12.01" Height x 3.5" Width x 6.5" Depth - Tower |
| Shipping Dimensions |
6.5" Height x 15.51" Width x 10.98" Depth - Tower |
| Weight |
14.55 lb |
| Shipping Weight |
15.65 lb |
|
| Package Contents |
OmniSmart 900 VA Rackmountable/Tower Digital UPS
USB and phone cabling
Manual with warranty information
|
| Additional Information |
Low voltage transfer to battery power: Switches to battery
power as line voltage decreases to 89V or less, switches back to AC
mode as line voltage increases to 94V or higher
High voltage transfer to battery power: Switches to battery
mode as line voltage increases to 139V or higher, switches back to AC
mode as line voltage decreases to 135V or lower
Network monitoring port: Single built-in USB port supports on
battery, low battery and power restored messaging. Interface supports
timed inverter shutoff after unattended shutdown. Compatible with Tripp
Lite's PowerAlert and Watchdog service software
Compatible with Tripp Lite's Watchdog system service to
restore operation to locked equipment through soft reboot of
application / OS or hard power off/on reboot of connected equipment
ideal for unattended kiosk applications
Switches: Includes 2 front panel switches - one main on/off
power switch and one dual function "alarm cancel" / "self test" button
Entry-level PCs, networked workstations, point-of-sale
equipment, small business phone systems, audio/video equipment and home
theater systems. Ideal for sensitive electronic applications in areas
where brownout conditions are common
|
| Certifications & Standards |
UL1778 (TUV)
cUL (TUV)
NOM
FCC Class B
|
| Software Included |
PowerAlert software |
|
| Standard Warranty |
2 Year(s) |
