Product Description:
Features:
100% compatibility with IDE (PC/AT) interface for seemless incorporation in most embedded platfoems
512 byte block size
Low power consumption - operates at both 5V and 3.3V
Supports both 8 and 16 bit Data Register Transfers
Write/Erase endurance 1,000,000 cycles
Internal ECC
Minimum 10 years data retention time
Specification:
Chip Density : 4 GB
Physical Capacity : 1 GB
Sector Card : 2,014,992

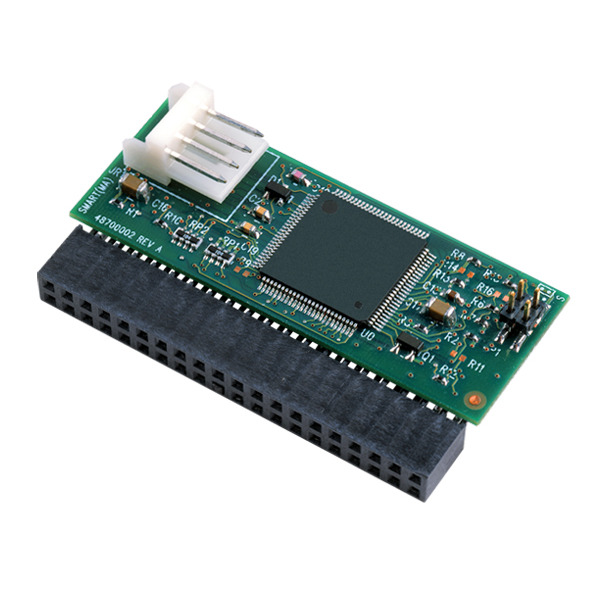

40 pin Mini-IDE Flash Disk
IDE-ATA-2-PIO Mode 4 Interface
ATA Controller : Storm BN
Operating Temperature : -40 ~ +85 C
Storage Temperature : -65 ~ 150 C
Humidity : 5% to 95%
|
