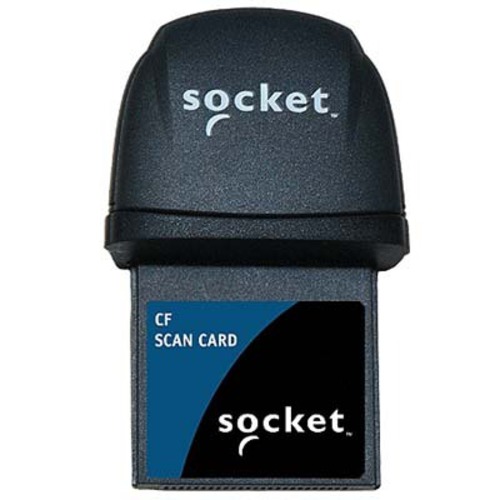

MODEL- IS5028-612 VENDOR- SOCKET COMMUNICATIONS INC.
FEATURES- CF Scan Card 5M- Single pack
The CFSC 5M is a Mid-Range scanning solution combining CompactFlash
and a Class 1 laser suitable for advanced scanning applications.
The CFSC 5M features fuzzy logic scanning technology for reading
damaged, poor quality or hard-to-read bar code labels.
The CFSC 5M will turn your Pocket PC into an advanced mobile bar
code scanner. Socket's bar code scanning brings a new level of
convenience and portability to mobile data collection by combining
Sockets Mobility Friendly CompactFlash technology with a
revolutionary laser scanner from Symbol Technologies. Just plug the
card into your Windows Powered Pocket PC, launch Sockets
SocketScan keyboard emulation software, and read bar code data into
any Windows program. Fuzzy logic technology enables the reading of
damaged or poorly printed bar codes.
Bar code scanning is the most efficient way to enter data into a
computer. If the data to be entered is bar coded, using a laser
scanner is 50 times faster and 10,000 times more accurate than
manual data entry. And it only takes one hand!
* Integrated Type II CF card and scanner plugs into the Type II
CompactFlash slot of Windows Powered Pocket PCs. Combine with CF-to-PC
card adapter (Part #4001-515, sold separately) to use in pen tablets or
laptops.
* Uses an advanced SE-824 Class 1 laser scanner engine from Symbol
Technologies. This is the smallest laser scan engine available today.
* Automatically decodes the most popular bar code symbologies including
UPC/EAN, Code 39, Code 128, MSI, RSS-14 and Codabar. Other symbologies
can be enabled by user with SocketScan Symbology selector.
* Fuzzy logic enables the ability to read damaged or poorly printed
barcodes.
* One-hand operation improves efficiency
* 2-color LED indicates laser operation and good read
* Sockets SocketScan software for Windows converts scanned bar code
characters into virtual keystrokes so that any Windows application treats
the characters as though they were typed on a keyboard.
* SocketScan enables the creation of prefixes and suffixes, such as Tab or
Carriage Return, to further eliminate key strokes in the data collection
process.
* This Battery Friendly solution draws only a few milliamps of current in
standby mode, extending the battery life of your Pocket PC.
* No extra batteries or special power adapter required. The CF Scan Card
gets power from the host Pocket PC.
* Works with Windows-based development tools so you can easily create
custom applications.
* For information on how to use this product with the Casio BE-300, Please
visit the support page.
* Note: The CF Scan Card works with all Windows operating systems EXCEPT
NT.
-- SPECIFICATIONs ---------------------------------
INTERFACE - CompactFlash (CF) Type II
PC Card (PCMCIA) with Type II (CF-to-PC Card adapter,
available separately: Product # AC4001-515).
BAR CODE SYMBOLOGIES DECODED-
Code 39, UPC/EAN/JAN, MSI, Code 128, Code 93, Codabar,
Interleaved 2 of 5, Discrete 2 of 5, RSS-14,
RSS-Limited/Expanded Stacked.
O/S SUPPORT - Windows Mobile for Pocket PC 2000/2002/2003 and HPC 2000
Windows XP
COMPATIBILITY- Windows COM Port
CLASS 1 DECODE DISTANCES-
2.2 to 30+ inches (depending on symbol size, symbology,
label media, W-N Ratio, and scan angle).
LASER - SE 824 Class 1 laser
SOFTWARE - Includes SocketScan
- Reads bar code data into any Windows application as if
manually typed.
- Lets you add Prefixes and/or Suffixes (e.g., Carriage
Return) to further reduce manual keystrokes.
- Lets you assign a beep tone or .WAV file to signify a
good scan.
- Lets you easily enable/disable any of 18 common
symbologies.
- Scan Demo reports symbology, length and decoded data (in
ASCII or Hex) of any scanned bar code (for 18 supported
symbologies).
- SDK available for developers
APPROVALS - FCC B, EN55024:1998, C-TICK, CompactFlash spec 2.0
POWER- (with 3.3V adapter) 4mA (Idle), 135 mA max (Scanning)
Also operates on 5V supply
SIZE - CF Card : 43 x 43 x 5 mm WT.- approx. 34 grams
Head Size: 83 x 51 x 20 mm
