Product Description:

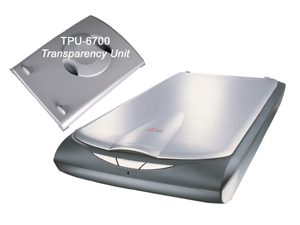

Astra 6700 USB 2.0 Scanner (bundled with
SilverFast SE) Product Features
- Faster than ever before: Lighting
fast scans with Hi-Speed USB 2.0
- 48-Bit Color Flatbed Scanner: Produces more colorful images
- 2400 x 4800 dpi Optical Resolution: For crisp, scalable
images. 19200 x 19200 maximum resolution
- Smart Push Buttons: 3 easy access
buttons for Email, Scan and Copy on the front panel
- Including Transparency Unit: Ideal solution for
transparency scanning
Astra
6700 USB 2.0 Scanner (bundled with SilverFast SE) Technical
Specifications
|
Scanner Type
|
Flatbed
|
Scanning Source
|
Cold fluorescent lamp
|
Optical Resolution
|
2400 dpi x 4800 dpi
|
Max Resolution
|
19200 dpi
|
Max Scan Area
|
8.5" x 11.69"
|
Max Transparency Unit Scan Area
|
3.97" x 5"
|
Scan Modes
|
Color Mode: 24 bits/pixel,
48 bits/pixel extendable
Grayscale Mode: 8 bits/pixel,
16 bits/pixel extendable
|
Interface
|
Hi-Speed USB 2.0
|
Humidity
|
20% - 80% RH
|
Power Consumption
|
less than 20W
|
Voltage
|
24Vdc, 0.84A
|
Dimensions (WxDxH)
|
10.71" x 18.82" x 3.43"
|
Net Weight
|
7.50 lbs.
|
OS Support
|
Windows 98/98SE/ME/2000/XP
Mac OS 10.1 - 10.3.x supports with SilverFast SE
|
System Requirements
|
Windows:
IBM PC compatible, Pentium or higher
USB 1.1 port or USB 2.0 port
At least 100MB of free hard disk space
At least 32MB of system memory (64MB recommended)
CD-ROM drive
Modem and internet connection required for E-Mail functionality
Macintosh:
Power Macintosh series, PowerBook series, iMac,iBook or later
At least 32MB of system memory (64MB recommended)
CD-ROM drive and USB port
Mac compatible display card and monitor with at least 256 colors |
|
