ADLINK Technology

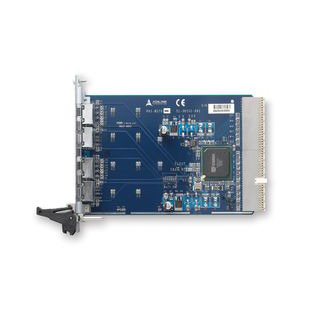

(GEA)PCI-to-PXI Expansion Interface card for PCI Chassis


791562_ADLINK_PCI8570.jpg-
Manufacturer ADLINK Technology
Mfg. Part # PCI-8570
ITEM# 324273
Unit Price $816.93 (~CAD$1,018.31)
Availability Back Order
[ Get notified when product becomes available. ]
Buy


Shipping and Handling:
 INTERNATIONAL GROUND SHIPPING:
For qualified orders, we will waive the Brokerage/Handling Fee for Custom Clearance and Documentation

No other hidden fees will be collected from you when packages arrive. Guaranteed
[ Detailed Explanation ]
[ View Detail Product Info ]


Product Description:

Features

  • Direct PC control of PXI/CompactPCI systems
  • Multi-chassis configurations for PXI/CompactPCI
  • Up to 2 PCI segments from single 8570
  • PCI local bus specifications Rev. 2.2 compliant
  • PCI to PCI bridge architecture specifications Rev. 1.1 compliant
  • PXI specifications Rev2.0 compliant
  • Up to 64-bit, 66 MHz PCI bus extension
  • StarFabric link performance; 528 Mbytes/s peak (64-bit, 66 MHz PCI), and 132 Mbytes/s peak (32-bit, 33 MHz PCI)

Introduction

The ADLINK PCI-8570 and PXI-8570 expand the capabilities of PCI by providing high level of scalability and reliability to PCI based system. Using StarGen’s StarFabric technology, the system extension sets provide a low latency, high throughput path to PCI slots in an expansion chassis. In addition, the single PCI- 8570 (or PXI-8570) could extend to 2 PCI segments, resulting in controlling 2 PXI/CompactPCI chassis with a single controller at lower cost.
