Product Description:
FEATURES:

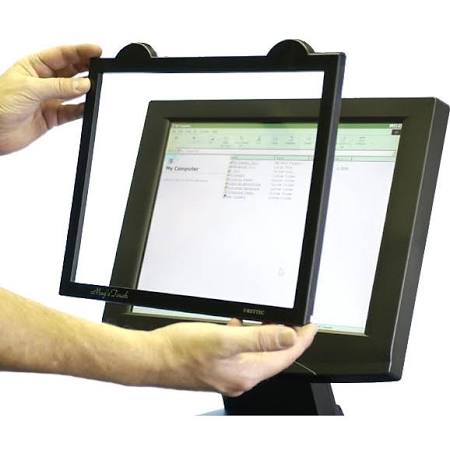

- Easily installed and removed. No
need to open up the computer
case,
and no power supply is needed.
- Activated on touch by almost anything - finger, fingernail,
gloved
hand or stylus.
- Touchscreen and mouse can be used concurrently. On-screen utility
icon allows easy swap of left-right mouse-button functions.
- Can eliminate the electrostatic and significantly reduce the
radiation generated from the monitor.
- Excellent scratch resistance and chemical resistance. It may be
cleaned with household cleaner, like Windex.
- Available for USB or Serial (COM 1 or 2) interface. Compatible
with
Win XP, 2000, 98, 95, ME, NT, Linux, Mac.
- 19-21 inch CRT and LCD monitor touchscreens available on request.
SPECIFICATION:
TECHNOLOGY |
Resistive analog touch screen. |
SPACER |
Invisible
spacer - patented technology |
LIGHT
TRANSMISSION |
80%
nominal |
SCRATCH
RESISTANCE |
3H
pencil hardness. |
TOUCH
RESOLUTION |
4096 x
4096 (USB-XD) or 2048 X 2048 (ProE-X) |
INTERFACE
CONTROLLER |
External
controllers: PC - USB port or serial port. Apple -
USB port. |
OPERATING
SYSTEMS |
Windows 95, 98, ME, 2000, XP, NT4.0., Linux,
Apple OS 8 to 10. |
DRIVER |
Mouse
emulation driver. |
ACTIVATION
FORCE |
50-120
grams per square centimeter. |
RESPONSE
TIME |
10 msec
maximum. |
POSITION
ACCURACY |
3 mm
maximum error. |
TOUCH
MODE |
Mouse
click, double click, drag, right click. |
OPERATING
TEMPERATURE |
-10 to
70 degrees C. |
STORAGE
TEMPERATURE |
-30 to
85 degrees C. |
HUMIDITY
|
Pass 40
degrees C, 95% RH for 96 hours. |
CHEMICAL
RESISTANCE |
Excellent
to alcohol, acetone, grease, and general household
detergent. |
DURABILITY
|
3,000,000
touches per point minimum. |
|
