Specifications

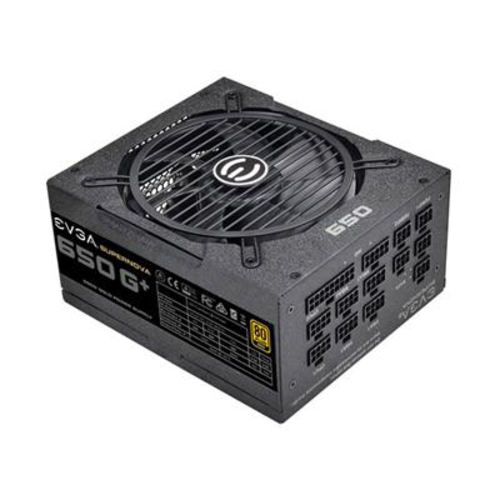

• Mfr Part Number: 120-GP-0650-X1

• Features:
  • 100% Japanese Capacitors ensure long-term reliability
  • 80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
  • Fully Modular to reduce clutter and improve airflow
  • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
  • Fully Modular to reduce clutter and improve airflow
  • Whisper Silent with 135mm Fluid Dynamic Bearing Fan
• Maximum Power: 650 W
• Input:
  • Voltage: 100 ~ 240 VAC
  • Current: 10-5 A
  • Frequency Range: 50 ~ 60 Hz

• Type: ATX12V / EPS12V

• Efficiency: 90% (115VAC) / 92% (220VAC~240VAC) or Higher Typical

• MTBF: 100,000 hours
• Fan: 1x 135mm Fluid Dynamic Bearing
• Output: +3.3V @ 24A, +5V @ 24A, +12V @ 54A, +5VSB @ 3.0A, -12V @ 0.5A
• Connectors: 1x 24pin ATX Main Connector, 2x 8(4+4)pin EPS Power Connectors, 4x 8(6+2)pin PCI-Express Connectors, 9x SATA Connectors, 6x 4pin Peripheral Connectors, 2x Floppy Connectors
• Approvals: TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement

• Dimensions (WxLxH): 150.0 x 170.0 x 85.0 mm
• Weight: 7.0 lbs
