Product Description:

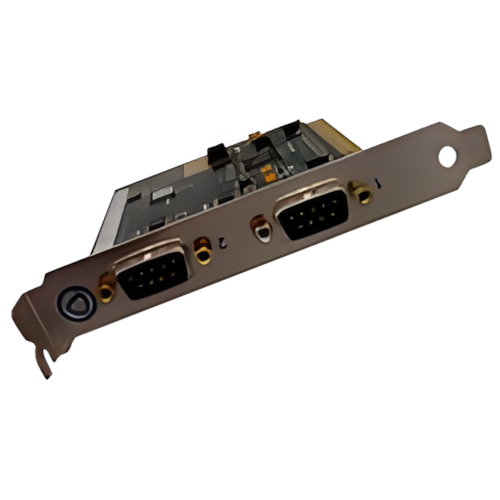

The Perle UltraPort SI PCI card is the
most advanced serial card solution onthe market today providing a
complete solutions for retail point of sale,data acquisition,
industrial automation, advanced kiosk design and much more.Perle
UltraPort SI with software selectable interfaces, provides the ability
to makedynamic configuration changes between EIA-232, EIA-422 and
EIA-485 withouthaving to take down the server. This ensures maximum
availability for missioncritical operations.
|
Product Type:
|
Serial
Adapter |
|
Host Interface:
|
Universal PCI
|
|
Data Transfer Rate:
|
Up to 921.6Kbps Serial Port
Up to 3.6Mbps Serial Port
|
|
Buffer:
|
64byte(s) |
|
Platform Support:
|
PC
Unix
Solaris
|
|
Ports:
|
2 x 9-pin DB-9
Male RS-232/422 Serial On-board |
|
Input Voltage:
|
3.3 V DC
5 V DC 5%
12 V DC 5%
-12 V DC 5%
|
|
Input Current:
|
410mA @ 5V DC
10mA @ 12V DC
|
|
Form Factor:
|
Plug-in Card
|
|
Dimensions:
|
3.46" Height x
5.2" Width |
|
Shipping Dimensions :
|
2.06" Height x
6.0" Width x 10.0" Depth |
|
Additional Information:
|
Signal support: TXD, RXD, RTS, CTS, DTR, DCD,
DSR, RI
25KV ESD surge protection across all
ports
Communication Protocols:
EIA-232
EIA-422/485
|
|
Compatibility:
|
PCI-X compatible
Compatible with 32 and 64 bit PCI slots
Supported Operating Systems:
Linux
Sun Solaris
SCO OpenServer
SCO UnixWare
Windows 2000
Windows NT
Windows XP
Windows 95/98
Windows Server 2003
|
|
Certifications & Standards:
|
IEC 60950
EN 60950
ANSI/UL 60950
EN 55024
FCC Part15 ,Class B
EN55022 Class B
CAN/CSA 22.2, No.60950
ICES-003, Class B
|
|
Standard Warranty:
|
Lifetime Limited
|
|
In Stock
