Specifications

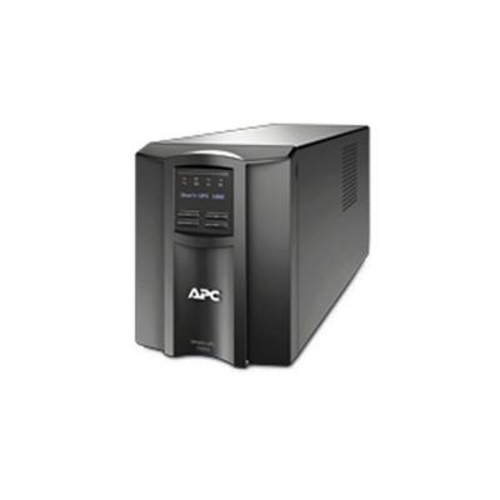

• Mfr Part Number: SMT1000C
• Output:
  • Output Power Capacity: 700Watts / 1.0 kVA
  • Max Configurable Power: 700Watts / 1.0 kVA
  • Nominal Output Voltage: 120 V
  • Output Voltage Distortion: Less than 5%
  • Output Frequency (sync to mains): 50~60Hz for +/- 3Hz
  • Other Output Voltages: 110, 127
  • Topology: Line Interactive
  • Waveform Type: Sine wave
  • Output Connections: 8x NEMA 5-15R (Battery Backup)
  • Transfer Time: 6ms typical, 10ms maximum
• Input:
  • Nominal Input Voltage: 120 V
  • Input Frequency: 50/60 Hz +/- 3 Hz (auto sensing)
  • Input Connections: NEMA 5-15P
  • Cord Length: 6 ft / 1.83 meters
  • Input Voltage Range for Main Operations: 82 ~ 144 V
  • Input voltage adjustable range for mains operation: 75 ~ 154 V
  • Number of Power Cords: 1
    Other Input Voltages: 110, 127
• Batteries & Runtime:
  • Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte - leakproof
  • Typical Recharge Time: 3 hours
  • Replacement Battery: RBC6
  • Expected Battery Life (years): 3 - 5
  • RBC Quantity: 1
• Communications & Management:
  • Interface Ports: SmartSlot, USB
  • Control Panel: Multi-function LCD status and control console
  • Audible Alarm: Alarm when on battery, distinctive low battery alarm, configurable delays
  • Available SmartSlot Interface Quantity: 1
• Surge Protection and Filtering:
  • Surge Energy Rating: 680 Joules
  • Filtering: Full time multi-pole noise filtering, 0.3% IEEE surge let-through, zero clamping response time, meets UL 1449
• Audible Noise at 1 Meter From Surface of Unit: 41.0 dBA
• Online Thermal Dissipation: 175.0 BTU/hr
• Approvals: CSA, CSA C22.2 No. 107.1, ENERGY STAR V1.0 (USA), FCC Part 15 Class B, ICES-003, UL 1778
• Color: Black
• Dimensions: 6.73 x 17.28 x 8.62 inch / 171.0 x 439.0 x 219.0 mm
• Weight: 44.31 lbs / 20.10 kg
• RoHS Compliant
