Specifications

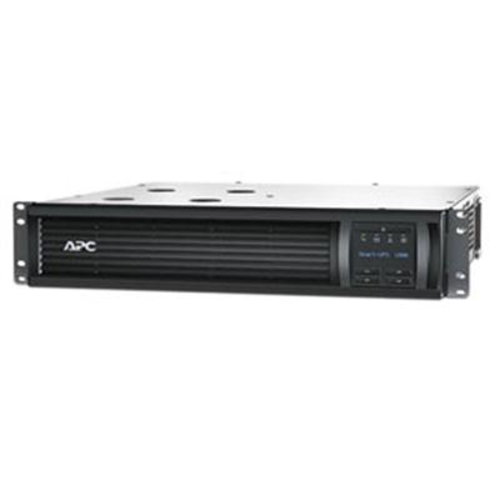

• Mfr Part Number: SMT1000RM2UC
• Output:
  • Output Power Capacity: 700Watts / 1.0 kVA
  • Max Configurable Power: 700Watts / 1.0 kVA
  • Nominal Output Voltage: 120 V
  • Output Voltage Distortion: Less than 5%
  • Output Frequency (sync to mains): 50/60Hz +/- 3 Hz
  • Other Output Voltages: 110, 127
  • Load Crest Factor: 3 : 1
  • Topology: Line Interactive
  • Waveform Type: Sine wave
  • Output Connections: 6x NEMA 5-15R (Battery Backup)
  • Transfer Time: 6ms typical; 10ms maximum
• Input:
  • Nominal Input Voltage: 120 V
  • Input Frequency: 50/60 Hz +/- 3Hz (auto sensing)
  • Input Connections: NEMA 5-15P
  • Cord Length: 8 ft / 2.44 m
  • Input voltage range for main operations: 82 ~ 144 V
  • Input voltage adjustable range for mains operation: 75 ~ 154 V
  • Number of Power Cords: 1
  • Other Output Voltages: 110, 127
• Batteries & Runtime:
  • Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte - leakproof
  • Typical recharge time: 3 hours
  • Expected Battery Life (years): 4 ~ 6
  • RBC Quantity: 1
• Communications & Management:
  • Interface Ports: SmartSlot, USB
  • Control panel: Multi-function LCD status and control console
  • Audible Alarm: Alarm when on battery; distinctive low battery alarm; configurable delays
  • Available SmartSloyt Interface Quantity: 1
• Surge Protection and Filtering:
  • Surge energy rating: 680 Joules
  • Filtering: Full time multi-pole noise filtering, 0.3% IEEE surge let-through, zero clamping response time, meets UL 1449
• Audible noise at 1 meter from surface of unit: 41.0 dBA
• Online Thermal Dissipation: 175.0 BTU/hr
• Approvals: CSA, CSA C22.2 No. 107.1, ENERGY STAR V1.0 (USA), FCC Part 15 Class B, ICES-003, UL 1778
• Rack Height: 2U
• Color: Black
• Dimensions (WxDxH): 17.00 x 18.78 x 3.39 inch / 432.0 x 477.0 x 86.0 mm
• Weight: 55.78 lbs / 25.3 kg
• RoHS Compliant
