| Manufacturer |
Netgear Inc |
| Manufacturer Part Number |
GS116NA |
| Manufacturer Website Address |
www.netgear.com |
| Product Name |

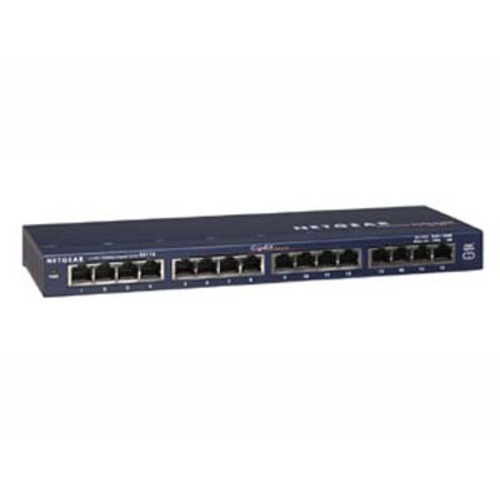

GS116 16-port Gigabit Ethernet Switch |
| Marketing Information |
Now
you can have a powerful, high-speed network on a small scale. NETGEAR's
GS116 Gigabit Ethernet Switch lets you build a system that provides a
full, dedicated 1000 Mbps connections so you can move very large files
across your network instantly. The standardsbased GS116 helps to
protect your existing and future network infrastructure investments by
painlessly integrating other 10, 100, and 1000 Mbps devices. This
potent switch is ideal for workgroups or quickly upgrading workstations
to full Gigabit speed, plus it's packed with ease-of-use features to
simplify your workday experience. It's compact design fits neatly into
small work spaces and, since it's self-cooling without a fan, it runs
silently and unobtrusively.
|
| Product Type |
Ethernet Switch |
|
| Interfaces/Ports |
16 x 10/100/1000Base-T LAN |
| Interfaces/Ports Details |
16 x RJ-45 10/100/1000Base-T Auto-sensing/Auto
MDI/MDI-X LAN |
|
| Connectivity Media |
Category 5 UTP |
| Data Transfer Rate |
10Mbps Ethernet Half-duplex
20Mbps Ethernet Full-duplex
100Mbps Fast Ethernet Half-duplex
200Mbps Fast Ethernet Full-duplex
1Gbps Gigabit Ethernet Half-duplex
2Gbps Gigabit Ethernet Full-duplex
|
| Performance |
32Gbps Bandwidth Non-blocking
14800pps Forwarding Rate 10Mbps Port(s)
148000pps Forwarding Rate 100Mbps Port(s)
1488000pps Forwarding Rate 1Gbps Port(s)
|
|
| Expansion Slots |
Not Applicable |
| Slot Details |
Not Applicable |
| Modules |
Not Applicable |
|
| Switching Method |
Store-and-forward |
| Supported Layers |
2 Switching |
| Stackable |
Not Applicable |
| Address Table |
8K MAC Addresses |
|
| Management |
Not Applicable |
|
| Memory |
512KB Buffer Memory per Port |
|
| Status Indicators |
Power, activity and link indicators for each
port
Link and speed indicators built into each RJ-45 port
|
|
| Input Voltage |
5 V DC Device |
| Input Current |
5 A @ 5V DC |
| Power Consumption |
25 W Maximum |
|
| Temperature |
0 °C (32 °F) to 40 °C (104 °F)
Operating |
| Humidity |
10% to 90% Non-condensing Operating |
| Thermal Dissipation |
38.8 BTU/h |
|
| Form Factor |
Wall-mountable
Desktop
|
| Dimensions |
1.06" Height x 11.22" Width x 4.06" Depth |
| Shipping Dimensions |
4.5" Height x 6.6" Width x 13.6" Depth |
| Weight |
2 lb |
| Shipping Weight |
3.9 lb |
|
| Package Contents |
16-port Gigabit Switch GS116
Wall-mount kit
AC adapter
Installation guide
Warranty/Support information card
|
| Additional Information |
Latency (100 to 100 Mbps): 40 µ (max)
Latency (1000 to 1000 Mbps): 10 µ (max)
Acoustic Noise: 0 dB
Compatibility:
Network software (e.g., Windows, Linux, Mac OS)
|
| System Requirement |
UTP Category 5 or better cables
Network card for each PC or server
|
| Certifications & Standards |
IEEE 802.3i: 10BASE-T Ethernet
IEEE 802.3u: 100BASE-TX Fast Ethernet
IEEE 802.3ab: 1000BASE-T Gigabit Ethernet
IEEE 802.1p
WWR scheduling
Safety Agency Approvals:
CE Mark
Commercial UL listed (UL 1950)
C-Tick
Electromagnetic Compliance:
CE mark
Commercial FCC Part 15 Class A
EN 55 022 (CISPR 22)
Class A VCCI
Class A C-Tick
|
|
| Standard Warranty |
5 Year(s) |
| Parts Warranty/Labor |
2 Year(s) - Power Adapter |
