Product Description:

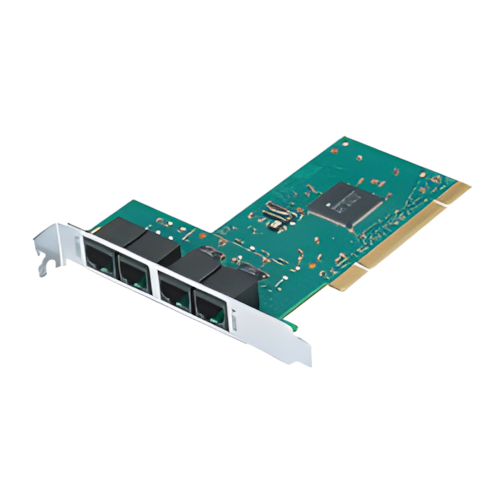

The Digi Neo Universal PCI (3.3V - 5V) cards leverages an Application
Specific Integrated Circuit (ASIC) to provide throughput speeds
exceeding 460.8 Kbps, large buffers for data transfer, low latency and
baud rate customization. These features, along with on-board surge
suppression on each signal and the low profile size, make the Digi Neo
ideal for application solutions with tight workstation constraints and
specialized server environments. Support for the most popular operating
systems and the variety of cabling options available with the Digi Neo
allow the user flexibility in their installation set-up. The enhanced
software monitoring and diagnostic tools provides the user assurance
that the set-up has been installed properly and working at the
specified serial port settings.
| Device Type |
Serial adapter - 4 ports |
| Form Factor |
Plug-in card |
| Interface (Bus)
Type |
PCI |
| PCI
Specification Revision |
PCI 2.3 |
| Bus Voltage |
Universal (3.3 V & 5.0 V) |
| Width |
0.7 in |
| Depth |
4.7 in |
| Height |
4 in |
| Localization |
North America |
| Networking |
| Connectivity
Technology |
Wired |
| Cabling Type |
Serial |
| Data Link
Protocol |
RS-232 |
| Data Transfer
Rate |
460.8 Kbps |
| Features |
Flow control |
| Expansion / Connectivity |
| Interfaces |
4 x serial - RS-232 - RJ-45 |
| Compatible Slots |
1 x PCI |
| Miscellaneous |
| Works with
Windows Vista |
Software and devices that carry the
Works with Windows Vista logo have been tested for baseline
compatibility with PC's running. |
| Compliant
Standards |
FCC Class B certified, VCCI Class B
ITE, EN 60950, UL 1950, EN55024, CSA 22.2 No. 950, EN55022 Class B |
| Software / System Requirements |
| OS Required |
SCO
OpenServer, Microsoft Windows 95/98, Linux, Microsoft Windows 2000 /
NT4.0, Microsoft Windows Millennium Edition, Microsoft Windows XP |
| Environmental Parameters |
| Min Operating
Temperature |
32 °F |
| Max Operating
Temperature |
131 °F |
| Humidity Range
Operating |
5 - 90% |
| Max Altitude
Operating |
12140 ft |
|
