NeutronCanada.com

CISCO

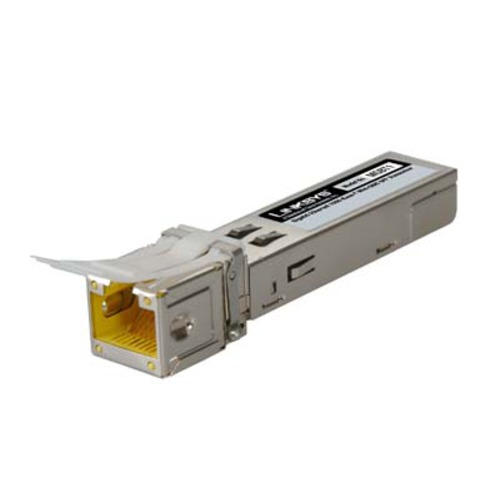

Cisco Gigabit Ethernet 1000 Base-T Mini-GBIC SFP Transceiver

Manufacturer	CISCO
Mfg. Part #	MGBT1
ITEM#	286601
Unit Price	$151.42 (~CAD$188.75)
Availability	[It may take 2-3 weeks to ship out]
Buy

INTERNATIONAL GROUND SHIPPING:
For qualified orders, we will waive the Brokerage/Handling Fee for Custom Clearance and Documentation
No other hidden fees will be collected from you when packages arrive. Guaranteed
[ Detailed Explanation ]

Direct Manufacturer Warranty Item: For any technical support, RMA service, please contact the Manufacturer directly from the date of purchase. In order to serve you better, Manufacturer requires all the service must go directly through them.

For peace of mind and to reduce your down time, check out our HOT SWAP Express Warranty.

Product Description:

MODEL- MGBT1             VENDOR- LINKSYS

FEATURES- Gigabit Ethernet LH Mini-GBIC SFP Transceiver
       This module inserts into the mini-GBIC port on either the SR2024
        or SR224G, creating new Gigabit ports. This module is hot-
        swappable, meaning you can connect it even when the switch is
        running.

  -- SPECIFICATIONs --------------------------------------
STANDARDS - Compliant with Specifications of SFP Transceiver MSA Spec.
CABLE TYPE- Wavelength: 1300 nm (1310nm TYP, 1290-1355nm,)
                   MMF: Core: 50 or 62.5um, Modular Bandwidth 500MHz/km
        Cable Distance: 550 to 2000m
                   SMF: Core: 50 um, Modular Bandwidth 500MHz/km
        Cable Distance: 550m
Dimensions: 0.33" x 0.53" x 2.22" (8.5 mm
POWER- 3.3 V  (supplied by mini-GBIC port)
       Surge Current 30 mA
       Dissipation : 530 mW (TYP. 830 Max.)
       Transmitter Spec.Power : -5 ~ 0 dBm
       Receiver Spec. -22 ~ -3 dBm
SIZE - 0.33" x 0.53" x 2.22"                WT.- 0.85 oz.
 www.linksys.com

[Disclaimer for Product Information]
