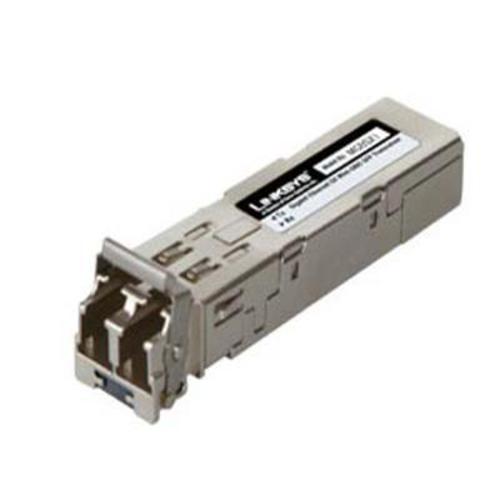

MODEL- MGBSX1            VENDOR- LINKSYS

FEATURES- Gigabit Ethernet SX Mini-GBIC SFP Transceiver
       This module inserts into the mini-GBIC port on either the SR2024
        or SR224G, creating new Gigabit ports. This module is hot-
        swappable, meaning you can connect it even when the switch is
        running.

  -- SPECIFICATIONs --------------------------------------
STANDARDS - Compliant with Specifications of SFP Transceiver MSA Spec.
CABLE TYPE- 850 nm (850nm TYP., 830-860nm) MMF (Multi-Mode Fiber)
           MMF: 62.5/125um fiber @ 160 MHz/km to 220m minimum distance
                62.5/125um fiber @ 200 MHz/km to 275m minimum distance
                50/125um fiber @ 400 MHz/km to 500m minimum distance
                50/125um fiber @ 500 MHz/km to 550m minimum distance
POWER- 3.3 V  (supplied by mini-GBIC port)
       Transmitter Spec  : Power : -9.5 ~ -4 dBm
       Reciever Spec     : Sensitivity: -20 ~ -17dBm
       Input Power       : -20 ~ -17 dBm
       Stress Sensitivity: 50/125 um: -13.5dBm, 62.5/125 um: -12.5dBm
SIZE - 0.33" x 0.53" x 2.22"                WT.- 0.63 oz.
