Product Description:

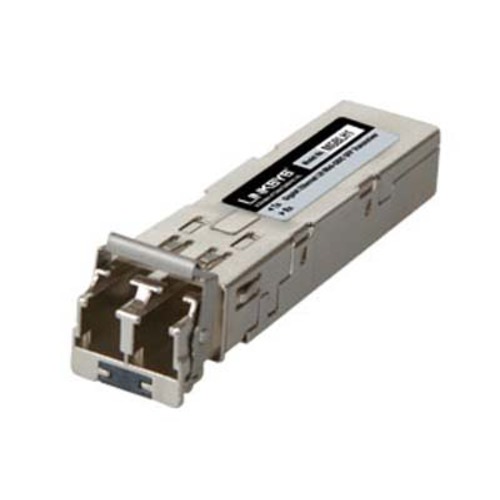

MODEL- MGBLH1 VENDOR- LINKSYS FEATURES- Gigabit Ethernet 1000BaseT Mini-GBIC SFP Transceiver This module inserts into the mini-GBIC port on either the SR2024 or SR224G, creating new Gigabit ports. This module is hot- swappable, meaning you can connect it even when the switch is running. -- SPECIFICATIONs -------------------------------------- STANDARDS - Compliant with Specifications of SFP Transceiver MSA Spec. CABLE TYPE- Wavelength: 1300 nm (1310nm TYP, 1290-1355nm,) MMF : Core: 50 or 62.5um, Modular Bandwidth 500MHz/km Cable Distance: 550 to 2000m SMF: Core: 50 um, Modular Bandwidth 500MHz/km Cable Distance: 550m POWER- 3.3 V 160-200mA (supplied by mini-GBIC port) Surge Current 30 mA Dissipation : 530 mW (TYP. 830 Max.) Transmitter Spec.Power : -5 ~ 0 dBm Receiver Spec. -22 ~ -3 dBm SIZE - 0.33" x 0.53" x 2.22" WT.- 0.85 oz. www.linksys.com
|
