Product Description:
|
| Manufacturer |
Tripp Lite |
| Manufacturer Part Number |
SMART1500RM2U |
| Manufacturer Website Address |
www.tripplite.com |
| Product Line |
SmartPro |
| Product Name |

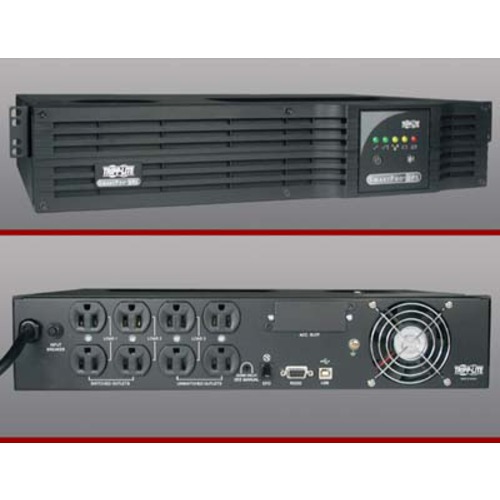

SmartPro 1500RM2U UPS |
| Marketing Information |
Tripp Lite's SMART1500RM2U intelligent,
line-interactive sine wave rack/tower uninterruptible power supply
prevents data loss, downtime and equipment damage due to power outages,
voltage fluctuations and transient surges. Requires only two rack
spaces (2U) in a standard rack enclosure. Large internal batteries
offer 25 minutes half load runtime and 10 minutes at full load.
Maintains regulated 120V nominal output without using battery power
during brownouts and overvoltages from 83 to 147V. 1500VA / 1000 watt
power handling capability and full time sine wave output supports
networking, telecom and other sensitive electronic applications.
Includes a total of 8 outlets arranged in 2 load banks that are
individually controllable by a software interface to reboot select
equipment on demand or automatically shed less significant loads to
extend battery runtime for more critical equipment. Supports
simultaneous remote monitoring of UPS and site power conditions via
built-in USB and DB9 monitoring ports. Optional SNMPWEBCARD accessory
enables remote monitoring of UPS as a managed device via network
management console applications. Communications ports support messaging
of detailed UPS operational parameters and line power status. Includes
PowerAlert UPS monitoring and unattended shutdown software with
management support for an unlimited number of network UPS systems. Free
PowerAlert enterprise management software is also available for select
opportunities. Built-in accessory slot supports SNMP with optional
SNMPWEBCARD adapter. Emergency Power Off (EPO) interface offers option
for instantaneous power-off of UPS and connected equipment in the case
of fire or emergency. Multi-function audible alarms and set of 5 front
panel LEDs offer at-a-glance notification of UPS and line power status.
Network-grade AC surge suppression protects equipment from damage and
performance problems resulting from transient surges and line noise.
Attractive all-black color scheme. Two year warranty with $250,000
connected equipment insurance (USA & Canada only). |
| Product Type |
Line-interactive UPS |
|
| Plug/Connector Type |
NEMA 5-15P |
| Receptacles |
8 x NEMA 5-15R |
|
| Load Capacity |
1500VA / 1000W |
| Input Voltage |
110V AC |
| Input Voltage Range |
120V AC Single-phase |
| Output Voltage |
120V AC Single-phase |
| Frequency |
60Hz |
| Waveform Type |
Sine Wave |
| Filtering |
EMI / RFI |
|
| Network Manageability |
SNMP Manageable Optional |
| Overload Protection |
15A input breaker |
| Audible Alarms |
On Battery
Overload
Low Battery
|
| Emergency Power OFF |
Yes |
|
| Status Indicators |
5 front panel LEDs - Green POWER LED, 3 color
BATTERY CHARGE LED, 3 color OUTPUT LOAD LEVEL LED, red BATTERY WARNING
LED. |
|
| Interfaces/Ports |
1DB-9
1USB
|
| Modular Slots |
1 x Communications Slot |
|
| Batteries |
Sealed Lead-acid User-replaceable Hot-swappable |
| Battery Life |
3 Year(s) to 6Year(s) |
| Backup/Run Time |
10 Minute(s) 1500VA Full-load
25 Minute(s) 750VA Half-load
|
| Battery Recharge Time |
4 Hour(s) |
|
| Temperature |
32 °F (0 °C) to 104 °F (40 °C)
Operating |
| Humidity |
0 to 95% Non-condensing Relative Humidity |
|
| Form Factor |
2U Rack-mountable |
| Power Cord/Cable |
10 ft |
| Dimensions |
3.5" Height x 17.5" Width x 13.5" Depth |
| Shipping Dimensions |
9" Height x 24" Width x 20.25" Depth |
| Weight |
46 lb |
| Shipping Weight |
53 lb |
|
| Package Contents |
SMART1500RM2U UPS System
Mounting hardware for 4 post rackmount installation
Cabling for USB & DB9 monitoring and EPO switching
PowerAlert unattended shutdown and UPS/Power monitoring
software
Warranty information and instruction manual
|
| Additional Information |
SMART1500RM2U line-interactive UPS offers battery derived
sine wave AC output during power outages, voltage regulation during
brownouts and overvoltages, plus network grade AC surge suppression
1500VA / 1000 watt power handling ability and full time sine
wave output offers guaranteed compatibility with properly sized
networking, telecom and other sensitive electronic devices
Supports 2U rackmount installation in 4 post rack enclosures
with included mounting accessories, 2 post mountable with optional
2POSTRMKIT accessory, upright tower installation supported with
optional 2-9USTAND accessory
Large internal batteries offer runtimes of 25 minutes at half
load (750VA / 500 watts) and 10 minutes at full load (1500VA / 1000
watts)
Maintains regulated 120V nominal output during brownouts and
overvoltages from 83 to 147V
Includes 8 UPS-supported outlets arranged in 2 individually
controllable load banks (2 outlets per bank)
PowerAlert UPS monitoring and unattended shutdown software
enables configurable network broadcast messaging, pager & email
notification, event logging and running user-defined script commands
Offers simultaneous monitoring by up to 3 directly-connected
devices through included USB, DB9 and SNMP* interfaces (*requires
optional SNMPWEBCARD), or the monitoring of any number of additoinal
UPS systems over IP with included PowerAlert monitoring software. Free
PowerAlert enterprise management software is also available for select
opportunities
Communications ports support messaging of UPS and line power
status, including on battery, low-battery, power restored, AC line
voltage, DC battery voltage and remaining battery capacity
Supports timed inverter shutoff after unattended shutdown,
activate self-test and UPS output power control for scheduled or
immediate reboot of connected devices
Supports Tripp Lite's WatchDog software application to
restore unresponsive programs by systematically restarting
applications, operating systems and ultimately rebooting completely
locked computers by momentarily switching UPS power off and back on
again (requires optional WATCHDOGSW)
Built-in accessory slot supports SNMP with optional
SNMPWEBCARD adapter
Emergency Power Off (EPO) interface with cable
Multi-function audible alarms and set of 5 front panel LEDs
Network-grade AC surge suppression
Attractive all-black color scheme
UPS battery set ships fully assembled and ready for
installation, no time consuming connection of internal batteries by
user is necessary
Two year warranty with $250,000 connected equipment insurance
(USA & Canada only)
|
| System Requirement |
TYPICAL APPLICATIONS: Ideal for rackmount or
upright tower protection of fileservers, network accessories and
telecommunications equipment in server rooms, internetworking closets,
co-location racks, kiosks and a variety of other locations. Common
applications include any mix of servers, workstations, hubs, routers,
concentrators, IP telephony and traditional PBX switching systems. |
| Certifications & Standards |
UL1778 (USA), cUL (Canada), FCC Class A
(emissions), NOM (Mexico), Conforms to IEEE 587 / ANSI C62.41
specifications |
|
| Standard Warranty |
2 Year(s) |
|
