Product Description:
|
| Manufacturer |
Tripp Lite |
| Manufacturer Part Number |
SMART1050SLT |
| Manufacturer Website Address |
www.tripplite.com |
| Product Line |
SmartPro |
| Product Series |
Tower |
| Product Name |

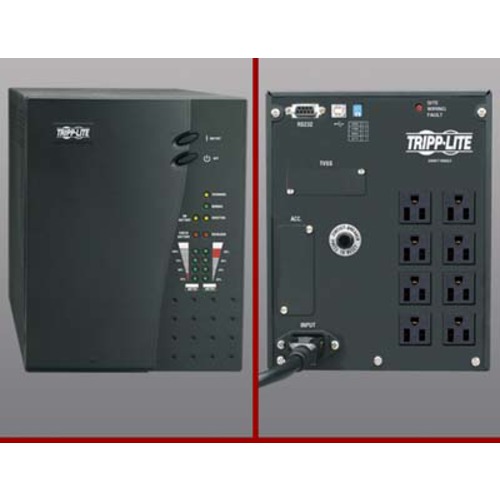

SmartPro Tower 1050SLT UPS |
| Marketing Information |
Tripp
Lite's SMART1050SLT intelligent, line-interactive sine wave UPS system
protects servers, networking accessories and telecommunications
equipment from blackouts, voltage fluctuations and transient surges.
Large internal batteries offer 18 minutes half load runtime and 6
minutes fully loaded. 1050VA / 670 watt power handling capability and
full-time sine wave output offers guaranteed compatibility with
networking, telecom and other sensitive electronic applications.
Includes 8 protected NEMA 5-15R output receptacles. Supports
simultaneous remote monitoring of UPS and site power conditions via
built-in network accessory, USB and DB9 serial monitoring ports.
Optional SNMPWEBCARD accessory enables remote monitoring of UPS as a
managed device via network management console applications.
Communications interfaces support messaging of UPS and line power
status, plus output power control for scheduled or immediate reboot of
all connected devices at once. Includes PowerAlert UPS monitoring and
unattended shutdown software with built-in management support for an
unlimited number of network UPS systems. Free PowerAlert enterprise
management software is also available for select opportunities.
Built-in audible alarm and 15 LEDs provide graphical readout of line
power, battery power, battery charge level, load level, plus AVR boost
and trim operational status information. Network grade AC surge
suppression protects equipment from damage and performance problems
resulting from transient surges. Attractive, black tower housing in
rugged all-metal enclosure. Two year warranty with $250,000 Ultimate
Lifetime Insurance. |
| Product Type |
Line-interactive UPS |
|
| Plug/Connector Type |
NEMA 5-15P |
| Receptacles |
8 x NEMA 5-15R |
|
| Load Capacity |
1050VA / 670W |
| Input Voltage |
110V AC |
| Input Voltage Range |
120V AC Single-phase |
| Output Voltage |
120V AC Single-phase |
| Frequency |
60Hz |
| Waveform Type |
Sine Wave |
| Filtering |
EMI / RFI |
|
| Network Manageability |
SNMP Manageable Optional |
| Overload Protection |
15A input breaker |
| Audible Alarms |
On Battery
Overload
|
|
| Status Indicators |
Includes
14 front panel LEDs to indicate line / battery power status, over /
under voltage correction, battery charge level (4 LEDs), load
percentage (4 LEDs), overload and replace battery. Also includes 1 rear
panel site wiring fault indicator. |
|
| Interfaces/Ports |
1DB-9
1USB
|
| Modular Slots |
1 x Communications Slot |
|
| Batteries |
Sealed Lead-acid User-replaceable Hot-swappable |
| Battery Life |
3 Year(s) to 6Year(s) |
| Backup/Run Time |
6 Minute(s) 1050VA Full-load
18 Minute(s) 525VA Half-load
|
| Battery Recharge Time |
4 Hour(s) |
|
| Temperature |
32 °F (0 °C) to 104 °F (40 °C)
Operating |
| Humidity |
0 to 95% Non-condensing Relative Humidity |
|
| Form Factor |
Tower |
| Power Cord/Cable |
6 ft |
| Dimensions |
8.75" Height x 6.75" Width x 16.75" Depth |
| Shipping Dimensions |
13" Height x 10" Width x 23.75" Depth |
| Weight |
43 lb |
| Shipping Weight |
48.5 lb |
|
| Package Contents |
SMART1050SLT UPS System
PowerAlert Software CD-Rom
USB and serial cabling
User manual with warranty information
|
| Additional Information |
SMART1050SLT
line-interactive UPS offers battery derived sine wave AC output during
power outages, voltage regulation during brownouts and overvoltages,
plus network-grade AC surge suppression
1050VA / 670 watt
power handling capability with full-time sine wave output offers
guaranteed compatibility with networking, telecom and other sensitive
electronic devices
Large internal batteries offer runtimes of
18 minutes at half load (525VA / 335 watts) and 6 minutes at full load
(1050VA / 670 watts)
Automatic Voltage Regulation (AVR)
circuits maintain user-selectable 100, 110, 120 or 127V nominal output
over an input voltage range of 91-145V
Includes 8
fully-protected NEMA 5-15R output receptacles arranged in a single load
bank that can be powered off and back on again via software interface
PowerAlert
UPS monitoring and unattended shutdown software enables configurable
network broadcast messaging, pager & email notification, event
logging and running user-defined script commands
Offers
simultaneous monitoring of up to 3 directly-connected devices through
included USB, DB9 and SNMP* interfaces (*requires optional
SNMPWEBCARD), or the monitoring of any number of additional UPS systems
over IP with included PowerAlert monitoring software. Free PowerAlert
enterprise managment software is also available for select
opportunities
Communications ports support messaging of UPS
and line power status, including on-battery, low-battery, power
restored, AC line voltage, DC battery voltage and remaining battery
capacity
Supports timed inverter shutoff after unattended
shutdown, activate self-test and UPS output power control for scheduled
or immediate reboot of connected equipment
Supports Tripp
Lite's WatchDog software application to restore unresponsive programs
by systematically restarting applications, operating systems and
ultimately rebooting completely locked computers by momentarily
switching UPS power off and back on again (requires optional
WATCHDOGSW)
15 LEDs offer continuous detailed status information of UPS
operating parameters and site power quality
Hot-swappable batteries allow on-site battery replacement
without powering off connected equipment
UL (USA), cUL (Canada), NOM (Mexico), FCC Class B (Emissions)
Listed
2 year warranty with up to $250,000 connected equipment
insurance
|
| System Requirement |
TYPICAL
APPLICATIONS: Ideal for the protection of network fileservers,
internetworking gear, switches, hubs, POS terminals, VOIP telephony and
traditional PBX switching systems, back office computer systems, ATM
machines, informational/internet/commerce kiosks, remote unattended
servers, web servers, database servers, security systems, card readers,
security cameras and other sensitive electronic devices requiring
clean, continuously-regulated output power. |
| Certifications & Standards |
UL1778
(USA), cUL (Canada), FCC Class B (emissions), IEC 1000-4-2 Level 3
(Electrostatic Discharge), IEC 1000-4-4 Level 2 (Fast Transient /
Burst), IEC 1000-4-5 Level 3 (Lightning Surge), Conforms to IEEE 587 /
ANSI C62.41 specifications |
|
| Standard Warranty |
2 Year(s) |
|
