Specifications

• Mfr Part Number: MB326SP-B

• Features:

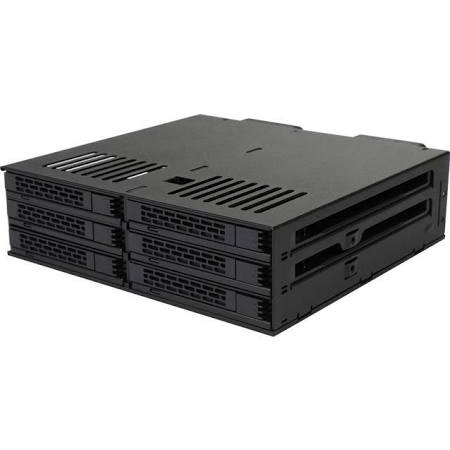

  • Supports up to 6x 2.5" SATA HDD/SSD into a single 5.25" bay
  • Support SATA III 6Gbps
  • Hot-swappable bays for quick drive installation
  • Accommodates 2.5" drives with 5mm, 7mm & 9.5mm height
  • Active Power Technology (APT) - only powers up if there is drive installed in the drive bay

  • Removable ExpressTray system for tool-less, easy installation comparable to tray-less designs
  • Optional bottom mounted screw holes for increased stability

  • Blue indicator LED provided for each bay
  • Dual 40mm fan for drive cooling
  • 3 pin fan headers to support many aftermarket fan upgrades
  • 2x 15pin SATA power connection powers all 6 drives

  • Locking latch design for both 7 pin SATA connector and 15 pin power adapter
  • Fan speed control for HIGH, LOW, and AUTO (smart cooling) settings
  • Metal case with heavy duty ABS tray and door latch
  • Designed for power users and system builder applications, mainly space saving and hot swap usage and for 2.5" HDD or SSD

• Support Drive Size: 2.5" SSD / HDD
• Compatible Drive Type: SATA
• Number of Drives: 6
• Max Drive Height: 9.5mm

• Drive Bays: 1x external 5.25" drive bay
• Host Interface: 6x SATA 7pin
• Power Input: 2x 15 pin SATA power connector
• Transfer Rate: Up to 6Gbps (Depending on hard drive speed)
• Support HDD Capacity: No Limitation
• Drive Cooling: 2x 40mm fan
• RAID Function: N/A

• Structure / Material: Metal & plastic
• Support Hot-Swap: Yes
• Drive Security: N/A
• RAID Status LED Indicator: N/A
• Drive Activity LED Indication: Drive power - solid green; HDD access - flashing green
• SATA Connector Insertion Rate: 10,000
• Compliance: CE, RoHS, REACH
• Color: Black
• Dimensions (WxLxH): 145.8 x 146.5 x 41.3 mm

• Weight: 0.97 lbs / 438.0 g
