Product Description:

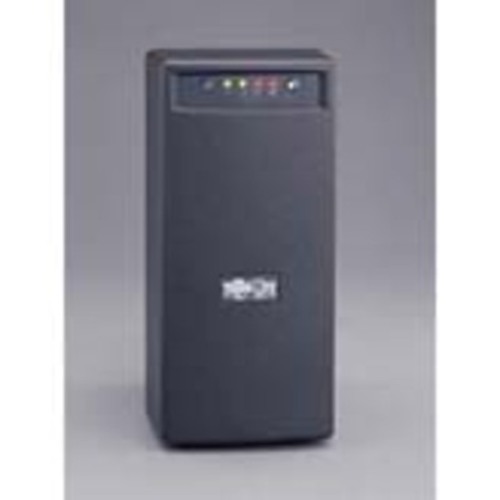

MODEL- SMART750USB VENDOR- TRIPPLITE
FEATURES- SmartPro USB 750 UPS System- Black finish
750VA line interactive tower UPS system; Enhanced communications via
USB port, free PowerAlert software and cabling; Corrects brownouts
as low as 83V; 6 outlets (3 UPS/3 surge-only); Single line
TEL/DSL/Ethernet line surge suppression; $200,000 Ultimate Lifetime
Insurance (USA & Canada only).
Tripp Lite's SMART750USB line-interactive UPS system offers
automatic voltage regulation, surge suppression and long lasting
battery support. 750VA/450 watt power handling ability supports
entry-level PCs, network workstations, point-of-sale equipment,
small business phone systems, audio/video equipment and home
theater systems. Internal UPS circuits support entry level PC
systems for up to 45 minutes during power failures so that
connected equipment can be shut down without data loss. Automatic
Voltage Regulation (AVR) circuits regulate brownouts as low as 83
volts back to usable levels without using battery power. Offers
complete desktop power protection in an attractive, black tower
configuration.
Includes 3 battery-supported outlets for computer, monitor and one
vital system peripheral as well as 3 additional surge-only outlets
for printers and other system accessories that do not require
battery support. USB port (USB cable included) enables optional
unattended system shutdown without data loss in the case of
extended power failure. PowerAlert Software available via free
download from www.tripplite.com. Built-in dataline protection jacks
offer protection of a single dialup phone/DSL line or network
Ethernet connection. Built-in audible alarm and 4 front panel LEDs
indicate line power status, battery power status, battery
low/replace status and voltage boost operation.
Offers 5 minutes battery runtime with a full load of 750VA/450 watts
and 17 minutes with a half load of 375VA/225 watts. Supports
battery replacement via built-in access panel.
DSL connections.
Find the TrippLite UPS appropriate for your needs. Try the TrippLite UPS Sizing Guide Today.
Includes SMART750USB Standby UPS System, USB and telephone
interconnection cables, Instruction manual with warranty information.
* SMART750USB line-interactive UPS system offers extended voltage
regulation (AVR) and battery support as well as complete AC and
dialup/DSL/ethernet line surge suppression.
* Supports entry level PC systems for up to 45 minutes during power
failures to enable a safe system shutdown.
* Supports a max load of 750VA/450 watts for 5 minutes and a half load of
375VA/225 watts for 17 minutes.
* Automatic Voltage Regulation (AVR) circuits correct brownouts as low as
83 volts without using battery power.
* Attractive black tower configuration.
* Includes 3 battery-supported outlets, plus 3 additional surge-only
outlets, 6 foot AC line cord (all NEMA 5-15).
* USB port enables unattended shutdown without data loss during extended
power failures; includes USB cable.
* Built-in USB port supports on battery, low battery, power restored, AC
line voltage, DC battery voltage and battery capacity messaging;
interface supports timed inverter shutoff after unattended shutdown,
activate self-test and 10 second reboot of connected equipment.
* PowerAlert UPS monitoring and unattended shutdown software available via
free download from www.tripplite.com.
* Supports Tripp Lite's WatchDog software application to restore
unresponsive programs by automatically restarting them and rebooting
completely locked computers by automatically switching UPS power off and
back on again (part #WATCHDOGSW).
* Built-in dataline suppression jacks protect a single dialup phone/DSL
line or network Ethernet line connection.
* Built-in audible alarm and 4 front panel LEDs indicate UPS system and
line power status.
* 750VA/450 watt power handling ability supports a variety of computer,
internetworking, telecom and consumer electronics equipment.
* Supports battery replacement via built-in access panel.
* Compatible with 120V/60Hz applications for USA, Canada, Mexico and more.
* 2 year manufacturer's warranty.
* $200,000 Ultimate Lifetime Insurance (USA & Canada Only).
-- SPECIFICATIONs --------------------------
OUTPUT- Output volt amp capacity (VA): 750
Output watt capacity (watts): 450
Output nominal voltage: 120V AC
Output voltage regulation: BATTERY MODE: PWM sine wave 120V
+/-5%
Output frequency regulation: LINE MODE, Passes line frequency of
60Hz +/-10%; BATTERY MODE, Inverter
output regulated to 60Hz +/-0.5Hz.
Outlet quantity/type: (6) NEMA 5-15R output receptacles
(3 with UPS and surge suppression/
3 surge-only)
INPUT - Maximum input amps/watts: 10A/1200 watts
Input connection type: NEMA 5-15P
Input cord length: 6 ft., 16 gauge
Recommended electrical service: 15A 120V
BATTERY- Full load runtime: 5 minutes (750VA)
Half load runtime: 17 minutes (375VA)
DC system voltage: 12 VDC
Typical battery lifespan: 3-6 years, depending on usage
Battery recharge rate: 2-4 hours to 90%
Battery Access: Hot-swappable batteries are accessible via
battery door.
VOLTAGE REGULATION-
Voltage regulation: Line interactive voltage regulation corrects
brownouts as low as 83V back to 120V nominal
values.
Direct pass through: Voltages of 106V and greater are passed through to
connected equipment unchanged.
Brownout correction: Input voltages between 83 and 105 are boosted by 14%
LEDS ALARMS & SWITCHES-
Front panel LEDs: 4 LEDs indicate performance conditions: GREEN "online"/
GREEN "voltage regulation enabled"/RED "on battery"/
YELLOW "battery low/replace".
Alarms: Audible alarm with 15 second delay sounds to indicate
loss of utility power. Alarm can be silenced by
pressing front panel alarm cancel button. Once
silenced, alarm will re-sound when approximately 2
minutes of runtime remain.
Switches: Includes 2 front panel switches - one main on/off power
switch and one dual function "alarm cancel"/"self
test" button.
SURGE/NOISE SUPPRESSION-
AC surge suppression : Conforms to IEEE 587/ANSI C62.41 specs.
AC suppression response time: Instantaneous
Dataline suppression: Single line TEL/DSL or network ethernet
surge suppression via single pair of
RJ-style 8 position jacks (ethernet
protection pins 1,2,3,6 - 7.5V clamping/
phone protection pins 4,5 - 260V
clamping), includes phone cable.
EMI/RFI AC noise suppression: Yes
COMMUNICATIONs -
Network monitoring port: Built-in USB port supports on battery, low
battery, and power restored messaging.
Software and cabling: Includes USB cable and PowerAlert Software
WatchDog compatibility: Yes, compatible with Tripp Lite's WatchDog
system service to restore operation to locked
equipment through soft reboot of application/
OS or hard power off/on reboot of connected
equipment - ideal for unattended kiosk
applications.
LINE/BATTERY TRANSFER -
Transfer time from line power to battery mode: 2-4 milliseconds
Low voltage transfer to battery power: Switches to battery power
as line voltage decreases
to 98 volts or less.
Resets back to line power
mode as line voltage
increases to 103V or
higher.
High voltage transfer to battery power: Switches to battery power
as line voltage increases
to 147V or higher. Resets
back to line power as
line voltage decreases to
143V or less.
COLD START - Yes, inverter can be "cold started" to enable temporary AC
output during a power failure.
MATERIAL - Constructed of PVC
FORM FACTOR- Tower, wall-mountable with optional UPSWM accessory.
COOLING - Convection
APPROVALS - UL1778 (USA), cUL (Canada), FCC Class B (emissions), NOM
(Mexico), FCC Part 68/Industry Canada (telecommunications).
SIZE- 11.0"w x 5.5"h x 7.5"d WT.- 17.4 lbs.
