Specifications

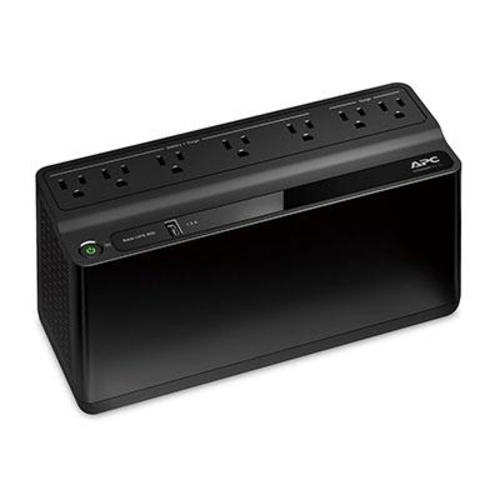

• Mfr Part Number: BE600M1
• Output
  • Output Power Capacity: 330 Watts / 600 VA
  • Max Configurable Power: 330 Watts / 600 VA
  • Nominal Output Voltage: 120V
  • Output Frequency (sync to mains): 50/60Hz +/- 3 Hz
  • Topology: Standby
  • Waveform Type: Stepped approximation to a sinewave
  • Output Connections
    • 5x NEMA 5-15R (Battery Backup)
    • 2x NEMA 5-15R (Surge Protection)
  • Transfer Time: 6ms (typical); 10ms (maximum)
• Input
  • Nominal Input Voltage: 120V
  • Input Frequency: 50/60 Hz +/- 3 Hz (auto sensing)
  • Input Connections: NEMA 5-15P
  • Cord Length: 5.0ft / 1.52 meters
  • Input voltage range for main operations: 92 - 139V
• Batteries & Runtime
  • Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte - leakproof
  • Typical recharge time: 10 hour(s)
  • Battery Volt-Amp-Hour Capacity: 66
• Communications & Management
  • Interface Port(s): USB
  • Control panel: LED status display with On Line; On Battery; Replace Battery and Overload indicators
  • Audible Alarm: Alarm when on battery; distinctive low battery alarm; overload continuous tone alarm
• Surge Protection and Filtering
  • Surge energy rating: 490 Joules
  • Filtering: Full time multi-pole noise filtering; 5% IEEE surge let-through; zero clamping response time; instantaneous
• Regulatory Approvals: California (CEC) Battery Charger, cTUVus, ENERGY STAR (USA), FCC Part 15 Class B, NOM, UL 1778
• Color: Black
• Dimension (WxDxH): 10.79 x 4.13 x 5.47 inch / 274.0 x 105.0 x 139.0 mm
• Weight: 7.7 lbs / 3.49 kg
• RoHS Compliant
