Product Description:
MODEL- OMNIVS1000 VENDOR- TRIPPLITE

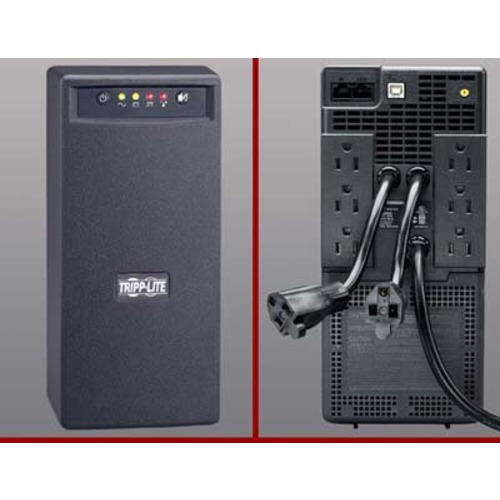

FEATURES- Omni VS UPS System- Black tower
1000VA Line interactive UPS for personal PCs and workstations.
Tripp Lite's OMNIVS1000 line interactive UPS system offers voltage
regulation, surge suppression and long lasting battery support for
personal computers, internetworking equipment and other sensitive
electronics. Internal UPS circuits support entry level PC systems
for up to 60 minutes during power failures so that connected
equipment can be shut down without data loss.
Automatic Voltage Regulation (AVR) circuits regulate brownouts as
low as 83 volts back to usable levels without using battery power.
Offers complete desktop power protection in an attractive black
tower configuration. Includes 6 battery supported outlets for
computer, monitor and one vital system peripheral, plus 2
additional surge suppression-only outlets for printers and other
system accessories not requiring battery support. USB port enables
optional unattended system shutdown without data loss in the case
of extended power failure, USB cable included.
PowerAlert software available via free download from
www.tripplite.com. Built-in single line RJ phone suppression jacks
protect modem, fax machine, cordless phone or other peripheral with
a standard dialup/DSL phone connection. Built-in audible alarm and
4 front panel LEDs indicate line power status, battery power
status, battery low/replace status and voltage boost operation.
1000VA/500 watt power handling ability supports entry-level PCs,
network workstations, point-of-sale equipment, small business phone
systems, audio/video equipment and home theater systems.
Offers 7 minutes battery runtime with a full load of 1000VA/500
watts and 18 minutes with a half load of 500VA/250 watts. Supports
battery replacement via built-in access panel.
DSL connections.
Find the TrippLite UPS appropriate for your needs. Try the TrippLite UPS Sizing Guide Today.
Includes OMNIVS1000 Line Interactive UPS, USB and telephone cable, User
manual with warranty information.
* OMNIVS1000 Uninterruptible Power Supply offers voltage regulation, surge
suppression and long lasting battery support.
* Supports entry level PCs up to 60 minutes during blackouts to enable
shutdown without data loss.
* Regulates brownouts as low as 83 volts back to usable levels without
using battery power.
* 6 UPS battery supported outlets, plus 2 additional surge suppression-
only outlets.
* USB port and cable enables unattended shutdown in the case of extended
power failure.
* PowerAlert software available via free download from www.tripplite.com.
* Single line phone suppression protects standard dialup/DSL phone
connection.
* Audible alarm and 4 front panel LEDs offer complete UPS and line power
status information.
* 1000VA/500 watt power handling ability supports a variety of sensitive
electronic equipment.
* 7 minutes full load runtime (1000VA/500 watts), 18 minutes half load
runtime (500VA/250 watts).
* Supports battery replacement via built-in access panel.
* $200,000 connected equipment insurance (USA & Canada only).
-- SPECIFICATIONs -----------------------------------
OUTPUT -
Output volt amp capacity (VA): 1000
Output watt capacity (watts) : 500
Output nominal voltage : 120V AC
Output voltage regulation : BATTERY MODE: PWM sine wave 115V +/-5%
Output frequency regulation : LINE MODE: Passes line frequency of 60Hz
+/-10%
BATTERY MODE: Inverter output regulated to
60Hz +/-0.5Hz
Outlet quantity/type : (8) NEMA 5-15R output receptacles (6 with
UPS and surge suppression/2 with surge
suppression only)
INPUT -
Maximum input amps/watts : 12A/1440 watts
Input connection type : NEMA 5-15P
Input cord length : 6 ft., 14 gauge
Recommended electrical service: 15A 120V
BATTERY-
Full load runtime : 7 minutes (1000VA/500 watts)
Half load runtime : 18 minutes (500VA/250 watts)
DC system voltage : 12 V DC
Typical battery lifespan : 3-6 years, depending on usage
Battery recharge rate : 2-4 hours to 90%
Expandable battery runtime: Includes two 6V 12AH sealed lead
Access : Door allows user replacement of batteries.
VOLTAGE REGULATION-
Voltage regulation : Line interactive voltage regulation corrects
brownouts as low as 83V back to usable values.
Direct pass through: Voltages of 106V and greater are passed through to
connected equipment unchanged.
Brownout correction: Input voltages between 83 and 105 are boosted by 14%
LEDS ALARMS & SWITCHES-
Front panel LEDs: 4 front panel LEDs indicate line power status, battery
power status, battery low/replace status and voltage
regulation operation.
Alarms : Audible alarm with 15 second delay sounds to indicate
loss of utility power. Alarm can be silenced by
pressing front panel alarm cancel button. Once
silenced, alarm will re-sound when approximately 2
minutes runtime remain.
Switches : Includes 2 front panel switches - one main on/off
power switch and one dual function "alarm cancel"/
"self test" button.
SURGE/NOISE SUPPRESSION-
AC surge suppression : Conforms to IEEE 587/ANSI C62.41 specs.
AC suppression response time: Instantaneous
Dataline suppression : Single line TEL/DSL surge suppression with
RJ-style phone connectors (center 2 wires
protected, 260V clamping), includes phone
cable.
EMI/RFI AC noise suppression: Yes
COMMUNICATIONS -
Network monitoring port: Single built-in USB port supports on battery,
low battery and power restored messaging.
Interface supports timed inverter shutoff after
unattended shutdown. Compatible with Tripp
Lite's PowerAlert and Watchdog service software
Software and cabling incl: USB cabling included, PowerAlert software
available for free download at
www.tripplite.com
WatchDog compatibility : Yes, compatible with Tripp Lite's Watchdog
system service to restore operation to locked
equipment through soft reboot of application/
OS or hard power off/on reboot of connected
equipment -- ideal for unattended kiosk
applications.
LINE/BATTERY TRANSFER -
Transfer time from line power to battery mode: 2-4 milliseconds
Low voltage transfer to battery power : Switches to battery power
as line voltage decreases
to 83 volts or less.
Resets to line power mode
as line voltage increases
to 87V or higher.
High voltage transfer to battery power : Switches to battery power
as line voltage increases
to 147 volts or higher.
Resets to line power mode
as line voltage decreases
to 143V or less.
COLD START - Inverter can be "cold started" to enable temporary AC output
during a power failure.
MATERIAL - Made of PVC
FORM FACTOR- Tower, wall mountable with optional UPSWM accessory.
COOLING - Convection
APPROVALS - UL1778 (USA), cUL (Canada), FCC Class B (emissions),
NOM (Mexico), FCC Part 68/Industry Canada (telecommunications)
SIZE - 5.25"w x 10.75"h x 7.25"d WT.- 21.2 lbs.
