Manufacturer |
Tripp Lite |
Manufacturer Part Number |
N516-15M |
Manufacturer Website Address |
www.tripplite.com |
Product Name |

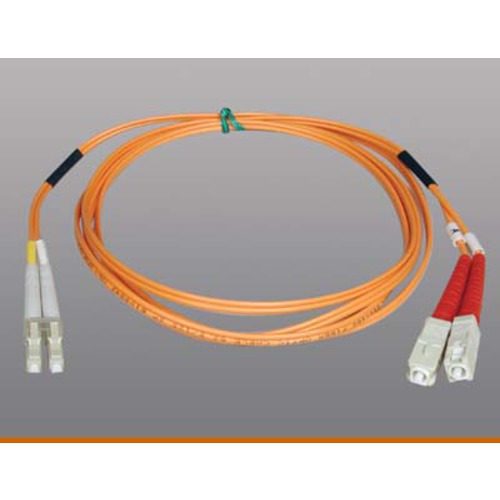

Duplex Fibre Channel Patch Cable |
Marketing Information |
Tripp Lite's multimode duplex fibre channel optic LC/SC patch
cable is manufactured from 50/125 zipcord fiber. The cable has SC
connectors on one end and LC connectors on the other. It has a PVC
jacket and is FDDI and OFNR rated. Duplex multimode fiber is most
commonly used in fiber and fibre channel applications. It is backward
compatible with 62.5 micron fiber and built-in headroom for future
applications. The cable provides higher bandwidth optimized for Gigabit
and 10Gbps networks. Tripp Lite warrants this product to be free from
defects in materials and workmanship for life.
|
Product Type |
Fibre Channel Patch Cable Multimode External |
|
Cable Length |
49.21ft |
Number of Connectors |
4 |
Connector Details |
2 x LC Male
2 x SC Male
|
Connectors |
2 x LC
2 x SC
|
Grade/Rating/Specifics |
50/125 micron cable |
Jacket |
PVC |
|
Shipping Dimensions |
9.5" Height x 6.5" Width x 1.25" Depth |
Shipping Weight |
0.38 lb |
|
Additional Information |
Fiber type: all glass graded index
Core diameter: two 50+/-3 microns
CLAD diameter: 125+/-2 microns
Primary coating diameter: 245+/-15 microns
Primary coating material: acrylate
Secondary coating diameter: 900+/-50 microns
Attenuation @850NM: 3.5DB/KM maximum, @1300NM: 1.0DB/KM
maximum
Bandwidth @850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM
minimum
Numeric apeture: .275 nominal
Proof test level: 100,000 PSI
Insertion loss testing performed on every connector (0.2db
typical) and provided with cable
Beveled edge on ends of glass makes insertion of plug a breeze
|
Certifications & Standards |
OFNR(riser rated)
FDDI
|
|
Standard Warranty |
Lifetime Limited |
