Product Description:

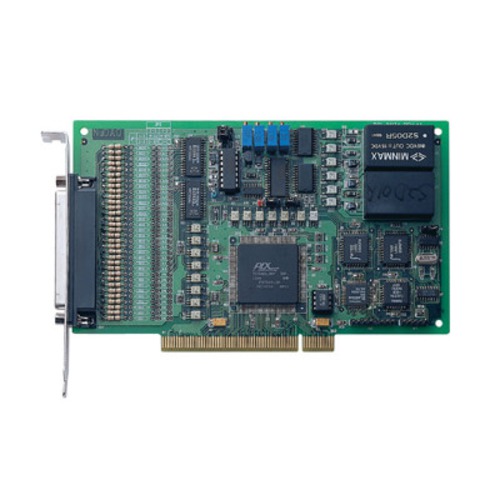

ADLINK PCI-9113A is a 32-CH, 12-bit, 100 kS/s isolated analog input
card. The PCI-9113A provides analog inputs with 3 programmable input
ranges for both bipolar and unipolar inputs. The 32-CH single-ended
analog
inputs can be converted to 16-CH differential analog inputs, which
improve the noise rejection in harsh industrial environments.
The analog inputs are isolated from the PC's system ground. This
feature not only protects the PC from being damaged from surges on the
signal lines, but also eliminates ground loops and common-mode problems
commonly seen in industrial measurement applications.
The PCI-9113A provides custom circuit area for input signal
conditioning. Either signal attenuation or filtering can be applied on
per channel basis. With all the features, ADLINK PCI-9113A delivers
cost-effective and
reliable data acquisition capabilities for ATE, sensor monitoring, data
logging, power transmission, and a broad variety of industrial
measurement applications.
- Supports a 32-bit 5 V PCI bus
- 12-bit A/D resolution
- Up to 100 kS/s sampling rate
- 32-CH single-ended or 16-CH differential inputs
- On-board 1 k-sample A/D FIFO
- Bipolar or unipolar analog input ranges
- Programmable gains of x1, x10, x100
- Automatic analog inputs scanning
|
