Product Description:

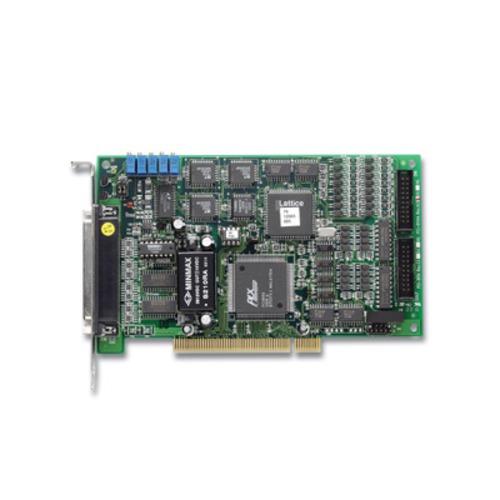

ADLINK PCI-9114 series are 32-CH, 16-bit, high resolution
multi-function DAQ Cards. The PCI-9114 device features
flexible configurations on analog input. The devices are divided into 2
kinds: normal gain version and high gain version.
Both versions provide 4 programmable input ranges for bipolar and
unipolar inputs. The A/D on the PCI-9114DG/HG
device features a sampling rate of 100 kS/s with resolution at 16 bits,
while PCI-9114A-DG/HG device features a
sampling rate of up to 250kS/s with resolution at 16 bits. The device
supports automatic analog input scanning, and
offers a differential mode for 8-CH analog inputs and maximum noise
elimination, as well as single-ended modes for 16-
CH analog inputs.
The PCI-9114 also features 1-CH 16-bit general purpose timer/counter,
16-CH TTL isolated digital inputs and 16-CH
TTL isolated digital outputs. ADLINK PCI-9114 delivers cost-effective
and reliable data acquisition capabilities and is
ideal for a broad variety of applications.
- Supports a 32-bit 5 V PCI bus,
- 16-bit A/D resolution
- Up to 100 kS/s sampling rate (PCI-9114DG and PCI-9114HG)
- Up to 250 kS/s sampling rate PCI-9114A-DG and PCI-9114A-HG)
- 32-CH single-ended or 16-CH differential analog inputs
- Bipolar or unipolar analog input ranges
- On-board 1 k-sample A/D FIFO
- Programmable gains: x1, x2, x4, x8 (PCI-9114DG and PCI-9114A-DG),
and x1, x10, x100 (PCI-9114HG and PCI-9114A-HG)
|
