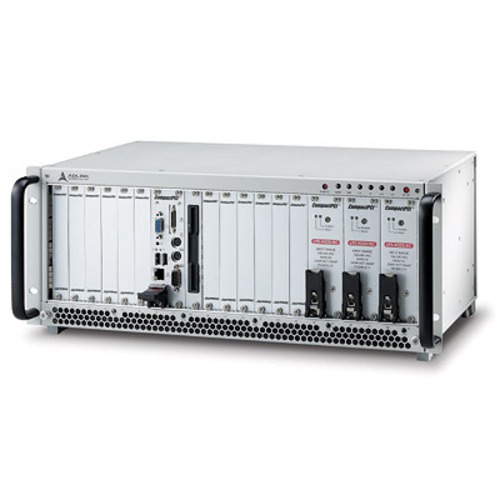

Product Description:
Features
3U CompactPCI backplane with 12 peripheral card slots and 1 system slot
2+1 hot swappable 500W+250W CompactPCI Power supply (each with 250W redundant)
Temperature, voltage, and fan monitoring LEDs
Supports current sharing on +5V, +3.3V, and +12V
PICMG 2.11 47-pin power interface
Hot-swappable cooling fans & filter
Supports rear I/O, BP with P2 Connectors (cPCIS-2633R)
* EMC blank panels (cPCI-Panel-Kit-3U1S) are optional. All models above do not include any system or peripheral board
* One cPCI segment, removable PCI to PCI bridge card for bus extension, system slot in the middle
|
