ADLINK Technology

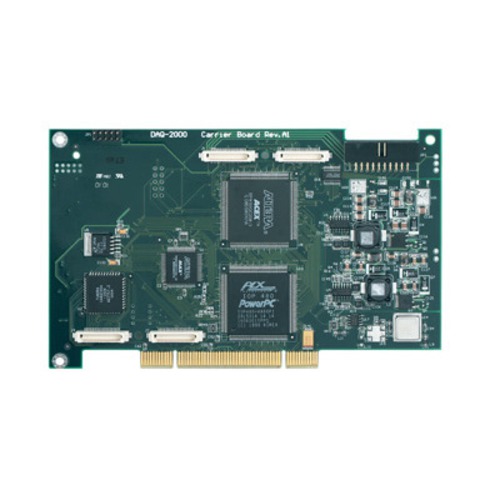

4CH 250KS/s simultaneouslysampling multi-function card


714142_ADLINK_DAQ2006.jpg-
Manufacturer ADLINK Technology
Mfg. Part # DAQ-2006
ITEM# 248170
Unit Price $1,427.80 (~CAD$1,779.76)
Availability In Stock
Buy


Shipping and Handling:
 INTERNATIONAL GROUND SHIPPING:
For qualified orders, we will waive the Brokerage/Handling Fee for Custom Clearance and Documentation

No other hidden fees will be collected from you when packages arrive. Guaranteed
[ Detailed Explanation ]
[ View Detail Product Info ]


Product Description:

Features

  • Supports a 32-bit 3.3 V or 5 V PCI bus
  • 4-CH differential analog inputs
  • Up to 2 MS/s simultaneous-sampling rate (DAQ-2010)
  • 14-bit A/D resolution (DAQ-2010)
  • 16-bit A/D resolution (DAQ-2005 & DAQ-2006)
  • Up to 8 k-sample A/D FIFO (DAQ-2010)
  • Bipolar or unipolar analog input ranges
  • Programmable gains of x1, x2, x4, x8

    Introduction

    ADLINIK DAQ-2010, DAQ-2005, and DAQ-2006 are simultaneous-sampling multifunction DAQ cards to meet a wide range of application requirements. The devices can simultaneously sample 4 AI channels with differential input configuration in order to achieve maximum noise elimination. They also provide 2-CH 12-bit analog outputs with waveform generation capability, which can be performed together with analog input functions. If more analog input or output channels are required, multiple cards can be synchronized through the SSI (system synchronization interface) bus. This makes the DAQ-2000 series ideal for the stimulus/response test. The DAQ-2000 series also feature analog and digital triggering, 24-CH programmable digital I/O lines, and 2- CH 16-bit general-purpose timer/counters. The auto-calibration functions adjust the gain and offset to within specified accuracies such that you do not have to adjust trimpots to calibrate the cards.
