Specifications

• Mfr Part Number: GS108-400NAS
• Features:
  • The standards-based ProSAFE Gigabit switches senses and adjusts for network speed and cabling type automatically. Easily integrates into your existing Ethernet network - no matter if it is running at 10/100Mbps or Gigabit speed
  • Simple set up with no software or configuration needed
  • Front panel LEDs keep you informed of power status, link speed and link activities
  • Prioritize mission-critical applications such as voice and video Support IEEE 802.1 p and DSCP-based QoS for delivering data based on priority and type
  • Superior network performance at non-blocking rate delivers true Gigabit speed with no compromise
  • Durable metal case and long product life (shown by MTBF numbers)
  • Support the latest Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active ports or when there is no link or no activity detected. It can further save energy when a short cable (<100m) is used. Energy savings lead directly to cost savings in operation
• Network Ports: 8x 10/100/1000 Mbps Ethernet RJ45 Ports
• Standards Compliance:
  • IEEE 802.3 Ethernet - IEEE 802.1p Class of Service
  • IEEE 802.3ab 1000BASE-T - IEEE 802.3x full-duplex flow control
• Max MAC Entries: 4K
• Buffer Size: 192 KB
• Performance:
  • Forwarding Modes: Store-and-forward
  • Bandwidth: 16 Gbps
  • Jumbo Frame Support: up to 9K packet size
  • Acoustic Noise (ANSI-S10.12): 0
  • Mean Time Between Failures (MTBF): 9,727,733
• Quality of Service (QoS):
  • DSCP
  • IEEE 802.1p COS
  • WRED (Weighted Deficit Round Robin)
  • Queue WRR Ratio - 1:2:4:8
• LEDs:
  • Per port - Speed, Link, Activity
  • Per device - Power Status
• Power Consumption: Worst case, all ports used, line-rate traffic, max PoE - 4.92
• Electromagnetic Emissions and Immunity: Certifications Class B (including but not limited to CE mark, commercial, FCC Part 15, VCCI, EN55022 (CISPR 22), C-Tick, EN50082-1, EN55024, CCC)
• Safety: CE Mark, Commercial; CSA Certified (CSA 22.2 #950); UL listed (UL 1950)/cUL IEC 950/EN 60950
• Dimensions: 6.22 x 4.00 x 1.06 inch / 158.0 x 102.0 x 27.0 mm
• Weight: 1.1 lbs / 0.5 kg
• Package Contents:

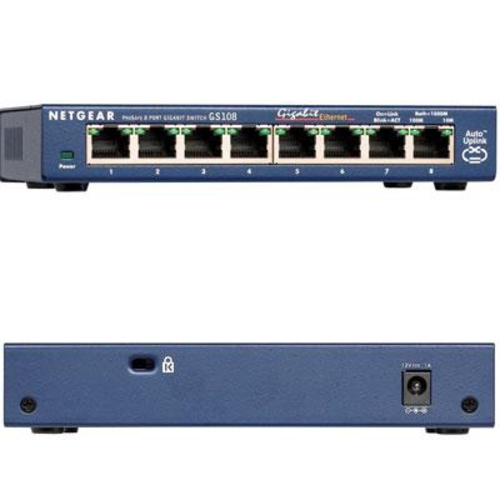

  • ProSafe Gigabit Ethernet Switch
  • Power adapter
  • Wall-mount kit and rubber feet
  • Quick Install Guide
