Specifications

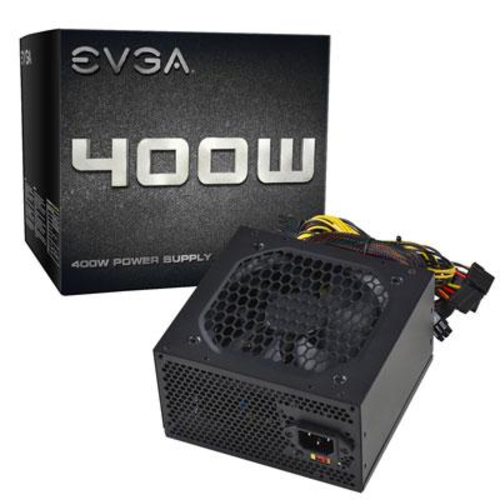

• Mfr Part Number: 100-N1-0400-L1
• Features:
  • Quiet and Intelligent Auto Fan for near-silent operation
  • Heavy-duty protections including UVP (Under Voltage Protection), OPP (Over Power Protection), and SCP (Short Circuit Protection)
• Maximum Power: 400 W
• Input:
  • Voltage: 100 ~ 240 VAC
  • Current: 10 - 5 A
  • Frequency Range: 50 ~ 60 Hz
• Type: ATX12V / EPS12V
• Efficiency: 75% Typical
• MTBF: 100,000 hours
• Fan: 1x 120mm Sleeve Bearing Fan
• Output: +3.3V @ 18A, +5V @ 17A, +12V @ 30A, +5VSB @ 2A, -12V @ 0.3A
• Connectors: 1x 24pin ATX Main Connector, 1x 8(4+4)pin EPS Power Connector, 1x 8(6+2)pin PCI-Express Connector, 1x 6pin PCI-Express Connector, 4x SATA Connectors, 3x Molex Connectors, 1x Floppy Connector
• Approvals: TUV, cUL, UL, CE, FCC, WEEE, RoHS
• Dimensions (WxLxH): 150.0 x 140.0 x 85.0 mm
• Weight: 4.0 lbs
