Specifications

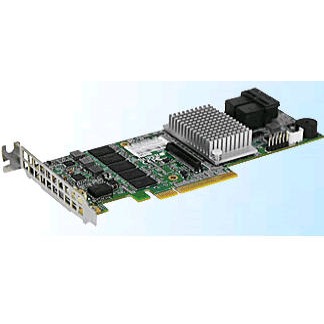

• Mfr Part Number: AOC-S3108L-H8IR
• Features:
  • Broadcom 3108 8-port PCI-E SAS-3 controller
  • 8-port (8 internal) 12Gb/s per port
  • Supports RAID 0, 1, 5, 6, 10, 50, 60
  • On board hardware IO Processor
  • 2GB 1866MHz DDR3 on-card cache
  • Advanced array configuration and management utilities
  • Automatically negotiates PCI-E link widths
  • Power management support

  • Supports 1.5, 3.0, 6.0 and 12Gb/s SAS and SATA data transfer rates
  • Port independent auto-negotiation
  • Supports SSP, SMP, STP and SATA protocols
  • Optional Supercap/TFM Unit for cached data protection (BTR-TFM8G-LSICVM02) - operating temperature (Ambient) from 10°C - 55°C
• Tested Motherboards and Servers: Motherboards - X10SRi-F, X10SRW-F, X9SRH-7F, X9DR3-LN4F+, X9DRW-CF31, X9DRT-PIBQ
• OS Support: Windows 2012, 2k8 64/32 bit, RedHat Enterprise and SUSE Linux

• Dimensions (LxH): 6.60 x 2.71 inch

• Low Profile Design

• RoHS Compliant
