Specifications

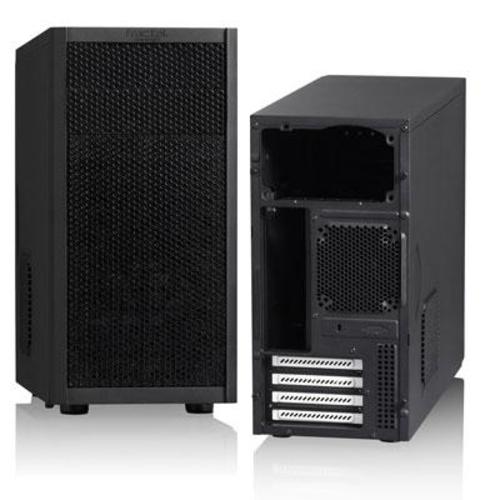

• Mfr Part Number: FD-CA-CORE-1000-USB3-BL
• Features:
  • Simple yet elegant mesh front panel allowing for increased airflow through the case
  • Optimized for performance in a compact, micro-ATX form factor with multiple cooling options
  • Innovative HDD positioning with mounts the HDD or SSDs vertically on the mounting bracket with anti-vibration silicone grommets
  • Dust filter for front fan position
• Case Type: MicroATX Case

• Color: Black
• Material: Steel

• M/B Type:  MicroATX, DTX, Mini-ITX
• Drive Bays:
  • External Bay: 2x 5.25" ODD, 1x 3.5" FDD (using convertor in ODD slot)
  • Internal Bay: 3x 2.5" or 2x 3.5" or 1x 3.5", 1x 2.5"
• Expansion Slots: 4
• Cooling System:
  • Front: 1x 120mm Hydraulic Bearing Silent Series R2 Fan (1200 RPM)
  • Rear: 1x 92mm Fan Vent (Fan not Included)
  • Side: 1x 120mm Fan Vent (Fan not Included)
• Side Windows: No
• Front I/O Panel: 1x USB 3.0 Port, 1x USB 2.0 Port, Audio In & Out
• Maximum Compatibility:
  • VGA Card Length: 210 mm (w/ two/three HDDs mounted); 350 mm (w/ at most one HDD mounted)
  • CPU Cooler Height: 148 mm
• Power Supply: None, 185mm Max ATX PSU Length
• Dimensions (WxDxH): 175.0 x 420.0 x 355.0 mm
• Weight: 4.1 kg
