Korenix
4+2G Unmanaged PoE Switch, DC12/24V to 48V Boost, w/4-port PoE (802.3af)

Manufacturer	Korenix
Mfg. Part #	JetNet 3806G
ITEM#	1186991
Unit Price	$727.66 (~CAD$907.03)
Availability	Back Order [ Get notified when product becomes available. ]
Buy

INTERNATIONAL GROUND SHIPPING:
For qualified orders, we will waive the Brokerage/Handling Fee for Custom Clearance and Documentation
No other hidden fees will be collected from you when packages arrive. Guaranteed
[ Detailed Explanation ]

[ View Detail Product Info ]

Product Description:

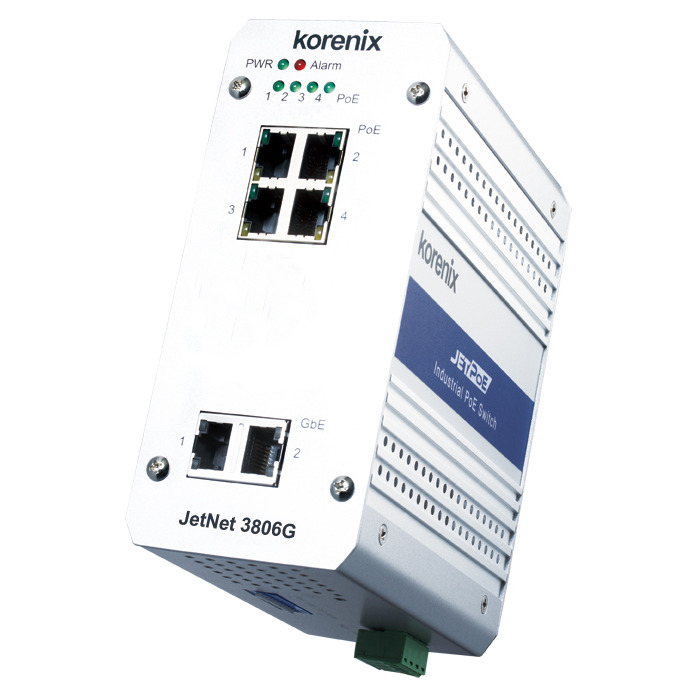

JetNet 3806G is an Industrial PoE Boost Switch designed with 4 Fast Ethernet PoE ports and 2 Gigabit uplink ports to ensure high-bandwidth uplink connection for large-scale surveillance in transportation system networks. JetNet 3806G integrates Korenix patented vehicle PoE technology – the 12V~24V to 48V power booster for making the deployment of standard PoE IP cameras feasible on buses, railcars, ships, etc. Moreover, the compact size with aluminum alloy metal enclosure allows JetNet 3806G to reliably operate under -25~60^oC wide temperature range applications.

12~24V Power Booster to 48V PoE
JetNet 3806G, designed with Korenix patented DC 12V~24V to 48V boost technology, is the best solution for the vehicle PoE applications, where DC 48V power supply is not available. With the built-in power booster, the JetNet 3806G can be powered by DC 12~24V to deliver 15.4W per port and 60W* per unit at DC 48V and 60^oC to PoE-enabled devices such as IP cameras, PoE Wireless APs, PoE IP phones…etc. and therefore, be easily applied in vehicles or carriages.

Gigabit bandwidth and QoS supported
JetNet 3806G features four PoE ports and two uplink gigabit Ethernet ports. Customers can connect up to 4 IP cameras and provide guaranteed large image uplink bandwidth connection. In addition, the JetNet 3806G supports QoS to ensure the high quality of video traffic transmission by simply adjusting the priority of data transfer.

Fault Relay function provided
JetNet 3806G provides fault relay to automatically warn users if any abnormal situation occurs. As a result, users can quickly handle the emergency and shorten the failover time.

Dimension (Unit=mm)
