Product Description:

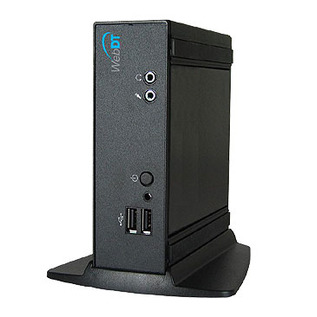

The WebDT 168 combines powerful computing, low power consumption, fan-less operation, simple set up and maintenance, and lowers the total cost of ownership. The WebDT 168 has a wireless option for mobile applications, and the software operating systems support server- and browser-based computing in addition to local, embedded applications. With expanded parallel and serial ports, and a choice in memory configuration, the space-saving package accommodates accessories and peripherals for a wide range of applications. The WebDT 168's efficient design makes it easy to integrate with other devices and mount almost anywhere; on a display, under a desk, or on a mobile cart.
- Support for Microsoft® Windows® XP Embedded, Microsoft® Windows® XP Pro and Microsoft® Windows® CE compliance
- Integrates major thin-client/server computing protocols (Citrix ICA, Microsoft RDP), terminal emulation suite; and web browser-based computing
- Comprehensive, easy remote device administration through server-based WebDT Manager software
- Fan-less, flash memory based system with no moving parts
- Custom bracket for space-saving VESA mounting to LCD displays and VESA mounts
- Available options for USB wireless networking; integrated 802.11 wireless LAN adapter
- Comprehensive set of USB and I/O ports; support for mini-PCI graphics adapter for dual monitor use; optional USB-to-Serial and PS/2 ports
- Compact, robust design
System |
Processor |
AMD Geode™ LX 800 |
I/O Ports |
12V DC-in Jack; Microphone-In; Audio-Out Jack; USB 2.0 Ports (4); Parallel (1); Serial (2); 10/100 BaseT Ethernet; VGA |
Operating System |
Microsoft® Windows® CE; Microsoft® Windows® XP Embedded |
Maximum Resolution |
Up to 1280 x 1024 |
Memory (RAM) |
128MB ? 1GB |
Memory (Storage) |
64MB ? 8GB |
Mechanical |
Enclosure |
Aluminum chassis; ABS Plastic end-caps |
Dimensions (H x W x D) |
1.8 x 5.7 x 5.1 in |
Environmental |
Regulatory |
FCC Class B, CE, UL, RoHS compliant |
Operating Temperature |
0° ? 40°C |
Humidity |
0% ? 90% non?condensing |
|
