Product Description:

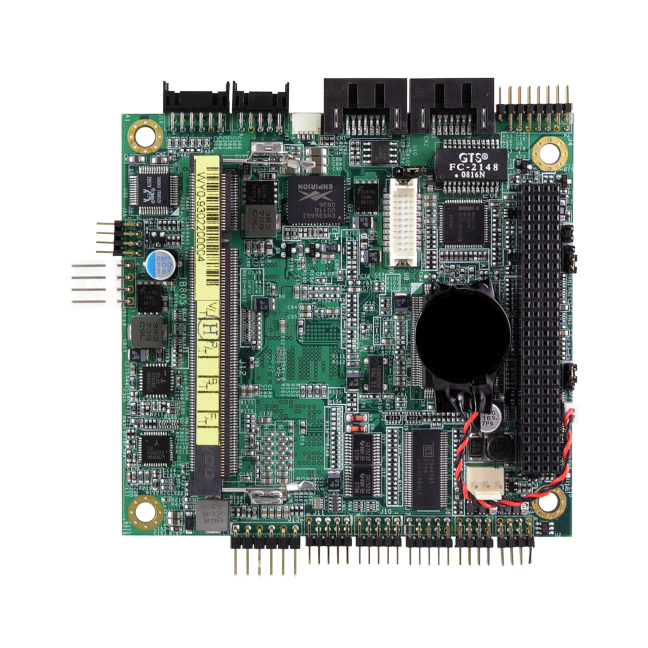

The IB805 board features the Intel’s Graphics Media Accelerator 950 core, Windows Vista Premium compatible, and supports VGA, CRT, and single channel 18-bit LVDS displays. A DDR2 SO-DIMM socket on board implements up to 1GB of system memory. One Gigabit LAN, with Intel 82574L controller, is also available. The IBASE IB805 includes Intel HD Audio, two SATA, two RS-232 serial ports, and four USB 2.0 high-speed ports.
- Onboard Intel Atom Processor N270, 1.6GHz, 533MHz FSB
- 1x DDR2 SO-DIMM, Max. 1GB
- Intel 82574L Gigabit LAN
- Integrated VGA, supports CRT and LVDS
- 2x SATA II, 4x USB 2.0, 2x COM
- 1x PCI-104 expansion connector on board, Watchdog timer
- Intel HD Audio
| CPU |
Intel® N270 Atom processor, 1.6GHz, 533MHz FSB
|
Chipset
|
Intel® 945GSE + ICH7M |
BIOS
|
Award BIOS, ACPI supported |
System Memory
|
One DDR2 SODIMM socket, single channel
Supports up to 2GB DDR2 533 SDRAM
|
| VGA |
Intel® Graphics Media Accelerator (GMA) 950,
supports CRT
|
| LVDS |
Suppports 18-bit single channel LVDS interface
(DF13 socket)
|
LAN
|
Dual Intel® 82574L PCI-E Gigabit LAN
Pin header for RJ-45
|
| Audio |
Built-in Intel® High Definition Audio
With Realtek ALC662 Codec
Supports 5.1 channels |
| LPC I/O |
Winbond W83627EHG
Keyboard/mouse, 2x COM, Hardware monitoring |
IDE Interface
|
N/A |
Serial Ports
|
Two RS-232 ports
|
Serial ATA
|
Supports 2 ports |
Watchdog Timer
|
Generates system reset; 256 levels
|
USB
|
Pin header supports 4 ports |
Keyboard and Mouse Connector
|
PS/2 type |
Onboard Headers/Connectors
|
LVDS, VGA CRT, 2x SATA, audio, Gigabit LAN header,
4x USB, 2x COM (90-degree header), PS2 KB/Mouse |
Power Connector
|
4-pin DC power connector (+5V, +12V)
|
Form Factor
|
PCI 104 SBC |
| Dimensions |
96mm x 90mm |
Power Consumption
|
Intel® Atom™ Processor N270 1.6GHz w/1 x 1GB DDR2-667
+5V: 2.93A +12V: 0.6A
|
| Operating Temperature |
0°C~60°C (32°F~140°F) |
| Storage Temperature |
-20°C~80°C (-4°F~176°F) |
| Relative Humidity |
10%~90% (non-condensing) |
|
