Product Description:

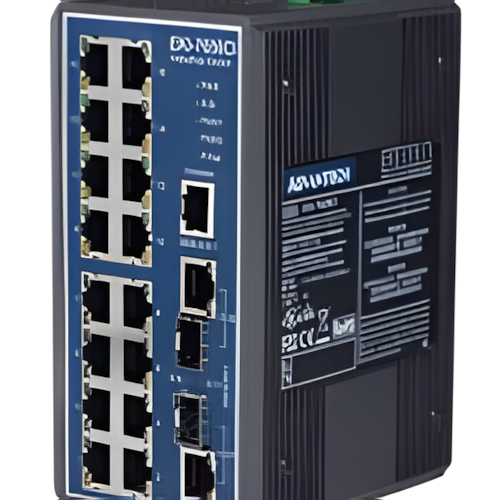

EKI-7656C supports 16 Fast Ethernet ports and 2 Gigabit combo ports. To create reliability in your network, the EKI-7656C comes equipped with a proprietary redundant network protocol -- X-Ring that was developed by Advantech, which provides users with an easy way to establish a redundant Ethernet network with ultra high-speed recovery time less than 10 ms. Furthermore, EKI-7656C also supports many advanced network standards to optimize network performance, ease maintenance issues, and secure network safety.
- 2 Gigabit Copper/SFP combo ports, plus 16 Fast Ethernet ports
- SFP socket for Easy and Flexible Fiber Expansion
- Redundancy: Gigabit X-Ring (ultra high-speed recovery time < 10 ms), RSTP/STP (802.1w/1D)
- Management: Web, Telnet, Serial Console, SNMP
- Control: VLAN/GVRP, QOS, IGMP Snooping/Query, LACP, Rate Limit
- Security: IP/MAC and port binding, DHCP Server, IP access list, 802.1X, SNMPv3
- Diagnostic: Port Statistic, Port Mirroring, RMON, Trap, Email Alert, Syslog
- Dual 12 ~ 48 VDC power inputs and 1 relay output
- Supports wide operating temperatures from -40 ~ 75° C
I/O |
Transmission Distance |
Ethernet: Up to 100 m
(4-wire Cat.5e, Cat.6 RJ-45
cable suggested for Gigabit port)
Gigabit Fiber: Up to 110 km
(depending on SFP) |
Transmission Speed |
Ethernet: 10/100Mbps Auto-Negotiation
Gigabit Copper: 10/100/1000 Mbps,
Auto-Negotiation
Gigabit Fiber: Up to 1000Mbps |
General |
Ethernet Connectors |
8 x RJ-45 + 2 RJ-45/SFP
(mini-GBIC) combo ports |
Mounting |
DIN-rail, Wall |
Operating System |
Operating Temperature |
-40 ~ 75°C (-40 ~ 167°F) |
Power Supply |
Power Input |
2 x Unregulated
12 ~ 48 VDC |
Power Connector |
6-pin removable
screw terminal |
|
