Specifications

• Mfr Part Number: TC-2U60PD8
• Features:
  • 80 PLUS High Efficiency and Reliability
  • Over Current Protection
  • Over Voltage Protection
  • Short Circuits Protection

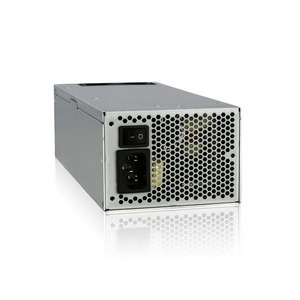

• Type: 2U 80 PLUS Switching Power Supply
• Output Capacity: 600W
• Efficiency: 80%
• Output: +3.3V @ 24A, +5V @ 24A, +12V @ 48A, -12V @ 0.5A, +5Vsb @ 2.5A
• Connectors: 1x 20+4pin Main Power Connector, 1x 4+4pin 12V Connector, 1x 8pin EPS 12V Connector, 1x 6+2pin PCI-Express Connector, 4x SATA Connectors, 4x Molex Connectors, 1x 4pin Floppy Connector

• Hold Up Time: 17 ms

• Dimensions (WxDxH): 3.94 x 9.45 x 2.76 inch / 100.1 x 240.0 x 70.1 mm
• RoHS Compliant
