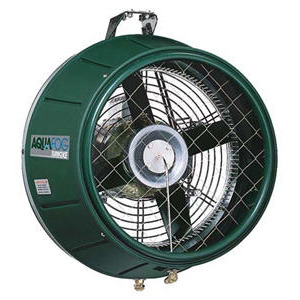

TurboXE-2000 Description
Versatile Aquafog atomizing fan units can handle a variety of
indoor/outdoor humidification or evaporative cooling applications. The
nozzle-free fans can atomize ordinary water supplies into a very fine
mist-like fog. Utilizing high-speed centrifugal force and powerful air
flow, these units can propel a misty-fog stream up to 35 feet away.
Units can be gravity-feed and are very resistant to acidic chemicals
when used in fumigation applications. Widely used in mid-large scale
commercial and industrial applications to humidify or evaporatively
cool large air spaces, but also ideal in spot cooling applications for
example; employees working near incinerators, brick ovens, foundries
ect.
Unlike other fog systems, TurboXE Foggers can accept ordinary
water supplies, even well or pond water without the risk of clogging.
The secret is in the nozzle-free, self-flushing atomization system that
forces liquids through passageways in the fan blades, atomizing as the
liquid exits the blades. In addition, TurboXEs do not require
high-pressure lines. Ordinary pressurized water lines are more than
enough, and units can even be gravity-fed. By eliminating specialized
pumps and filtering equipment, Aquafog saves time and reduces costs.
The unique atomization process combined with the fan?s forced
circulation provides high quality fog and uniform fog distribution.
The powerful TurboXE is engineered to withstand humid
conditions as high as 100% RH and above, and corrosive environments
containing salts, lime, ammonia and other acidic compounds. Units are
constructed of impenetrable components like Nema 4 connections, all 304
SST hardware, UV stabilized polyethylene plastics, PVC dip-coated
steel, and sulfuric anodized aluminum. XE fans are also
standard-equipped with a Baldor wash-down-duty motor that is
specifically designed for wet, corrosive environments. This all-over
quality construction protects our foggers from humid environments and
the other corrosive conditions they are placed in.
TurboXE Fan Features
- Standard-equipped with a Baldor wash-down-duty motor for
strength and reliability in wet, harsh environments.
- Uses ordinary water and power supply to produce high
quality, high volume fog.
- Fans can be stationary or equipped with oscillation.
- Excellent for safe, effective chemical fogging. Used for
liquid pesticide and fungicide application, insecticide use and foliar
feedings.
- Capable of continuous duty operation.
[ XE-2000 Fans are standard equipped with a dark green housing and a
dual voltage, white epoxy painted wash-down-duty? (WDD) motor 115/230V,
1ph, 60Hz. See ?Motor Option? below for other motor options.]
Also Included With Every Fan Unit
- Adjustable-angle hanging bracket
- Choice of visual flowmeter panel with strainer
- 12? SJO indoor/outdoor, heavy-duty power cord
- 20? Poly-Flo water line tubing
- 16? water drainage line
- 100% stainless steel hardware
- Easy-to-follow operator?s manual
|
