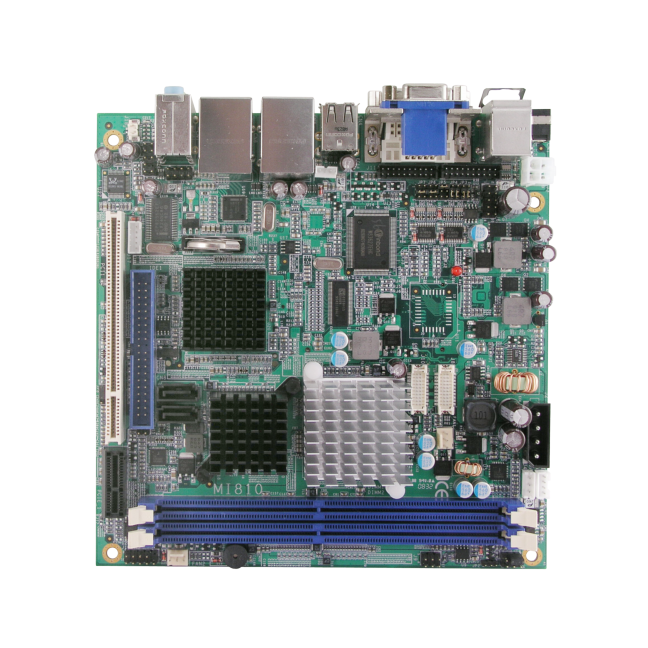

IBASE Technology ITX, Intel Atom N270 (1.6GHz) onboard, 945GSE+ICH7M, w/ ICH LANx1, VGA (DVI/CRT/LVDS), COMx4, DC-In 12V/19V, CFx1, PCIx1+PCI-E(1x)x1+mPCI-Ex1, (RoHS)

Manufacturer IBASE Technology Mfg. Part # MI810 ITEM# 1013875 Unit Price $253.00 (~CAD$315.37) Availability Back Order [ Get notified when product becomes available. ] Buy

Shipping and Handling: Singular Select... Regular [6-9 Business Days] -- $49.5[CAD$61.71] Priority [4-6 Business Days] -- $89[CAD$110.94] Extreme [2-4 Business Days] -- $130[CAD$162.05]  INTERNATIONAL GROUND SHIPPING: For qualified orders, we will waive the Brokerage/Handling Fee for Custom Clearance and Documentation No other hidden fees will be collected from you when packages arrive. Guaranteed [ Detailed Explanation ]

[ View Detail Product Info ]

Product Description: Intel® AtomTM N270 945GSE Mini-ITX motherboard w/ VGA and 10/100 LAN Supports Intel® Atom N270 processors 1.60GHz speed, 533MHz FSB Two DDR2 DIMM, Max. 2GB Supports CRT, DVI and 18-bit dual channel LVDS ICH7M 10/100 and Intel® PCI-E Gigabit Ethernet 2x SATA, 8x USB 2.0, 4x COM, CF Socket 1x PCI, 1x PCI-E (x1), 1x Mini PCI-E, +12V/19V DC-in CPU Intel® AtomTM N270 Single Core processor 1.60GHz speed CPU Front Side Bus ( FSB ) 533MHz Chipset Intel® 945GSE ICH7M BIOS Award BIOS, ACPI supported System Memory Two DDR2 sockets support up to 2GB DDR2 SDRAM PC533 DDR2 SDRAM Integrated VGA Intel® 945GSE integrated Graphics Media Accelerator (GMA 950) supports CRT LVDS Supports 18-bit dual channel LVDS LVDS interface via 2x DF13 sockets DVI Onboard Chrontel CH7307C for DVI; connector on edge LAN LAN1: ICH7M built-in 10/100BT MAC + Intel 82562ET PHY LAN2: Intel® 82574L PCI Express Gigabit LAN controller Audio ICH7M integrated audio controller with ALC662 for 5.1 channels LPC I/O Winbond W83627EHG chipset, Fintek 81216DG 1x IDE, 1x KB, 1x mouse, 4x COM 2x SATA Serial Ports One RS232/422/485 and three RS-232 COM ports Serial ATA Supports 2 SATA II ports USB (2.0) Supports 8 USB ports (6 ports + 2 ports via pin header) Keyboard and Mouse Connector PS/2 type Watchdog Timer Generates system reset; 256 levels Hardware Monitoring Built in W83627EHG; monitors system/CPU temperature and voltage status Digital I/O 4 in / 4 out Power Connector DC power jack for +12V/+19V DC-in Expansion Slots 1x PCI, 1x PCI-E (x1), 1x Mini PCI) Edge Connectors DC-in, PS/2 KB/Mouse Mini DIN, VGA CRT + DVI-D, COM1 + DVI, 1x or 2x RJ-45, 4x USB, Triple jack for audio Onboard Connectors/Headers IDE1 (40-pin), CF socket (solder side), Digital I/O, 4x COM, 2x SATA, USB5/6/7/8, Digital I/O, LPT* Form Factor Mini-ITX Motherboard Dimensions 170mm x 170mm Power Consumption Intel® AtomTM N270 1.6GHz w/ 2x 1GB DDR2-800 +12V: 2.65A Rear Connectors   Environmental Factors Operating Temperature: 0°C~60°C (32°F~140°F) Storage Temperature: -20°C~80°C (-4°F~176°F) Relative Humidity: 10%~90% (non-condensing)

[Disclaimer for Product Information]
