Product Description:

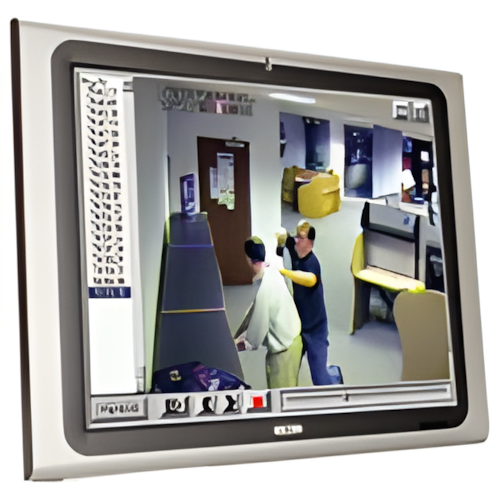

17" 300cd/m2 SXGA LCD monitor,Plastic front panel,Gray color
- 17" TFT LCD Monitor
- Elegant design with durable and light plastic construction
- Multiple video inputs are suitable for more applications
- Built-in speakers
- Ambient light sensor (ALS) detects ambient light for automated
screen
adjustments to optimize viewing. (For AFL-15M/17M/19M only)
- Remote control for OSD functions
- Picture-in-Picture (PIP) function
- Supports panel, wall, rack or VESA stand mounting (Optional)
- Supports RS-232 or USB touch screen panel (Optional)
- IP 64 compliant plastic front panel
- RoHS compliant
| LCD Size |
17" |
| Max
Resolution |
1280 x 1024 (SXGA) |
| Brightness
(cd/m2) |
300 |
| Contrast
Ratio |
800:1 |
| Display Color |
16.7M |
| Pixel Pitch
(mm) |
0.264(H) x 0.264(V) |
| View Angle
(H/V) |
160º/160º |
| Backlight
MTBF(Hrs) |
50000 |
| Dimension(W
x H x D mm) |
428 x 350 x 65 |
| Operating
Temperature |
0~+50°C |
| Front Panel
Protection |
IP 64 Compliant |
| Power Adapter |
60W |
| Input Video
Signal Connector |
1. BNC Connector
(NTSC/PAL)
2. YPbPr
3. S-Video
4. VGA
5. DVI
|
| Audio In |
AMP 3W + AMP 3W
(internal speaker) |
| Extension |
1. Ambient Light Sensor
2. IR Sensor
(Remote Control)
|
| Construction
Front Panel |
ABS and PC Plastic front
frame |
| Contruction
Chassis |
Aluminum Chassis |
| On Screen
Display (OSD) |
1. OSD Keypad below the
Front Panel
2. Remote Control for OSD Functions
|
| User's
Controls |
OSD Buttons: Power,
Left, Up, Down, Right ,Menu
OSD:Image (Brightness, Contrast ,Sharpness),
Display (Auto Adjust, Phase, Clock,Display Control)
PIP(Pip On/Off, Pip Input Select, Pip Size, Pip Position ,Pip Color
Controls,Blend)
Color (Auto Color, Color Tmperature, sRGB)
System(Audio, Factory Reset , Information, Input select, Misc)
|
| Mounting |
Wall mounting (VESA 100
x 100mm) |
|
